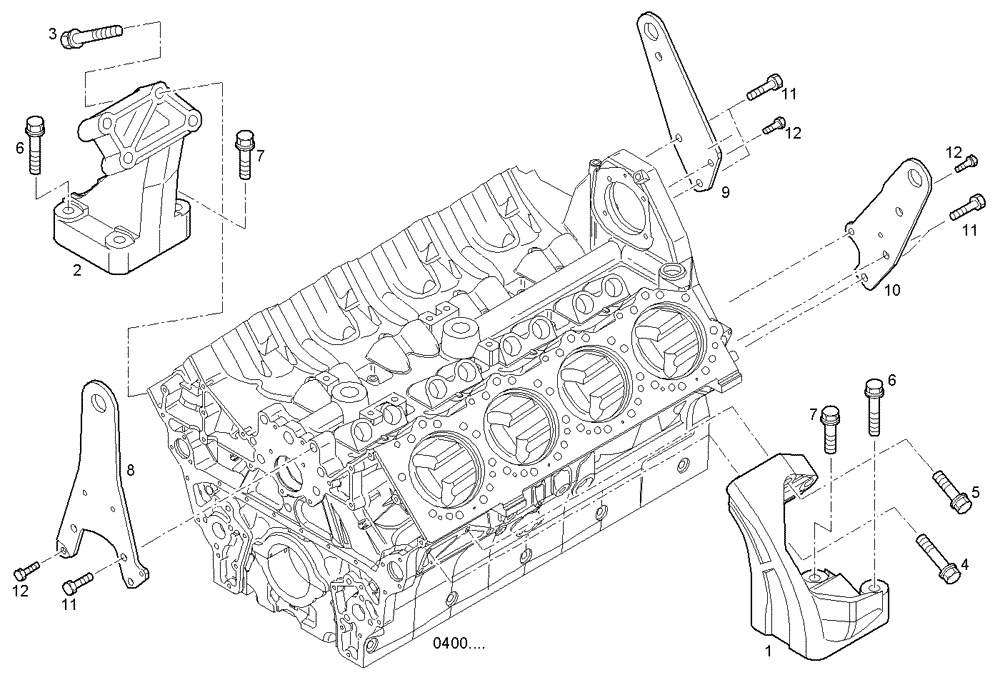

Запчасти Case IH FVAE2884X B200 (0442.008) - ENGINE SUSPENSION

1

504259444

BRACKET

FRONT ENG. MOUNT, LEFT

1шт.

2

504081192

BRACKET

FRONT ENG. MOUNT, RIGHT

1шт.

3

16680935

SCREW,M14 x 70mm

HEXAGON BOLT, M14X70 MM

4шт.

4

16680835

BOLT,M14 x 65mm

HEXAGON BOLT, M14X65 MM

2шт.

5

16680535

SCREW,M14 x 50mm

HEXAGON BOLT, M14X50 MM

2шт.

6

16683435

SCREW

HEXAGON BOLT, M16X80 MM

4шт.

7

16682935

SCREW,Flng, M16 x 60mm

HEXAGON BOLT, M16X60 MM

4шт.

8

504095475

HOOK

HOOK, FRONT

1шт.

9

504262596

HOOK

HOOK, REAR - RIGHT

1шт.

10

504262593

HOOK

HOOK, REAR - LEFT

1шт.

11

16680134

SCREW

HEXAGON BOLT, M14X30 MM

7шт.

12

16677735

SCREW,M12 x 25mm

HEXAGON BOLT, M12X25 MM

3шт.
