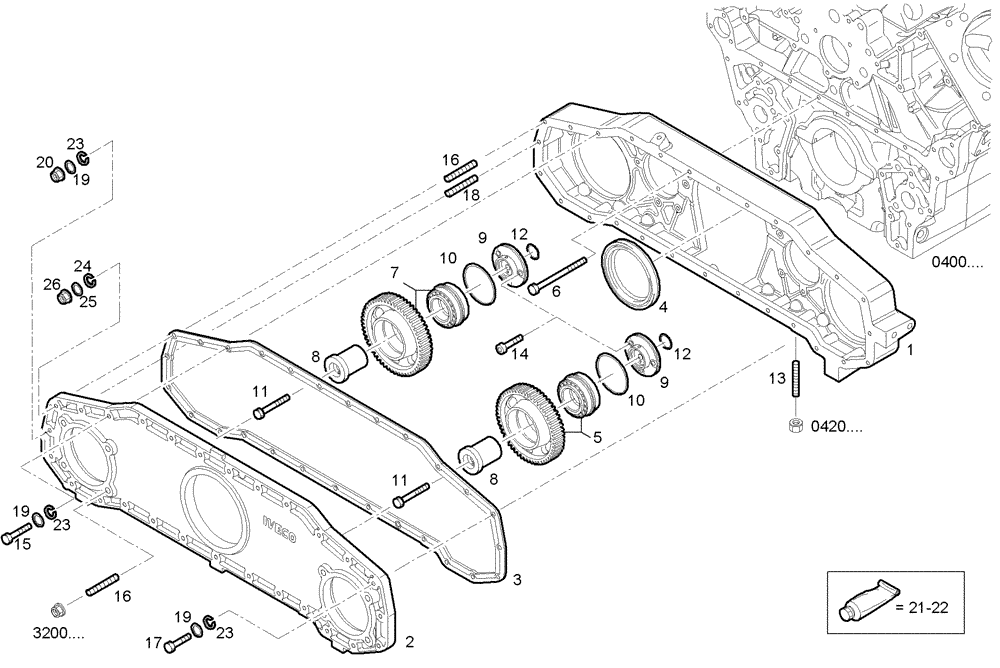

Запчасти Case IH FVAE2884X B200 (0430.222) - INSERTED BOX ASSEM.

1

504112486

HOUSING

TIMINGGEAR HOUSIN, FROM 10-06-05

1шт.

1

504040123

TIMINGGEAR HOUSIN, UP TO 09-06-05

SPARE PART

1шт.

2

504113264

COVER

FRONT C.CASE COVER, FROM 10-06-05

1шт.

2

504040124

FRONT C.CASE COVER, UP TO 09-06-05

SPARE PART

1шт.

3

504045915

GASKET

FLAT ENGINE GASKET, UP TO 09-06-05

1шт.

4

504036096

SHAFT SEAL

SHAFT SEAL, dia=100X130X13/14 MM

1шт.

5

504041130

IDLER GEAR

GEAR, RIGHT ASSY

1шт.

6

16626734

SCREW

HEXAGON BOLT, M8X100 MM

10шт.

7

504041129

IDLER GEAR

GEAR, LEFT ASSY

1шт.

8

504042359

SHAFT

SHAFT

2шт.

9

504042358

SPACER

SPACING BAR

2шт.

10

14465681

O-RING,3.484" ID x 3.762" OD x 0.139"

O-RING, dia=88,49X3,53 MM

2шт.

11

16678934

SCREW

HEXAGON BOLT, M12X80 MM

2шт.

12

17282681

GASKET

O-RING, SP=2,62 MM

2шт.

13

2853653

DOWEL

STUD, M10X30 MM

6шт.

14

16692134

SCREW

CYLIND-HEAD SCREW, M10X1,25X25 MM

6шт.

15

16625734

SCREW,M8 x 35mm

HEXAGON BOLT, M8X35

3шт.

16

16748734

SCREW

STUD, M10X1,25X35 MM

14шт.

17

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

10шт.

18

16746835

SCREW

STUD, M8X30 MM

8шт.

19

16665514

WASHER

WASHER, dia=8 MM

21шт.

20

17042531

NUT

HEXAGON NUT, M8

8шт.

21

2992504

LOCTITE

ADHESIVE/STICKER, LOCTITE, FROM 10-06-05

1шт.

22

2992695

SEAL

ADHESIVE/STICKER, LOCTITE

1шт.

23

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

SPRING WASHER, dia=8X16 MM SP=1,4 MM

11шт.

24

17090074

WASHER

SPRING WASHER, dia=10X20X1,9 MM

6шт.

25

10730521

WASHER,M10 x 20 OD x 2.5 Thk

WASHER, dia=10,5 MM

6шт.

26

17042635

HEXAGON NUT, M10

SPARE PART

6шт.
