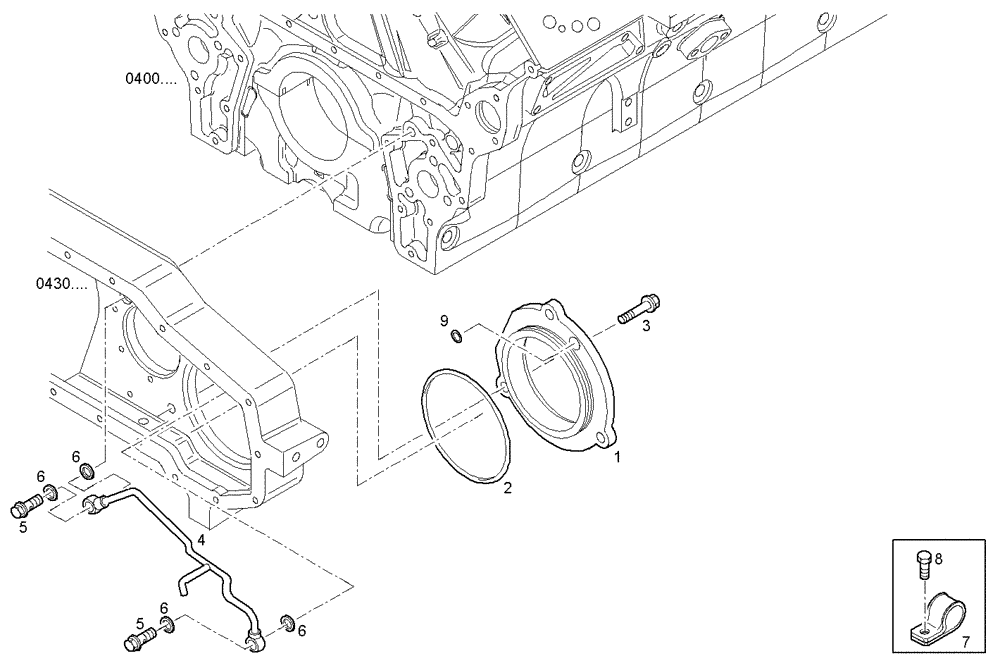

Запчасти Case IH FVAE2884X B200 (3800.048) - AIR COMPRESSOR without compressor

1

504093845

COVER

COVER

1шт.

2

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

O-RING, dia=129,8 MM SP=3,53 MM

1шт.

3

16677735

SCREW,M12 x 25mm

HEXAGON BOLT

3шт.

4

504050100

PIPE

OIL LINE

1шт.

5

4864079

BANJO BOLT

SCREW CONNECTOR, M10X1

2шт.

6

98474305

SEALING WASHER

WASHER, dia=10X17 MM SP=2,3

4шт.

7

17314590

COLLAR

RETAINER, dia=6 MM

1шт.

8

2853970

BOLT

HEXAGON BOLT, M6X10 MM

1шт.

9

14456881

O-RING,0.362" ID x 0.103" Width

O-RING, dia=9,19 MM

1шт.
