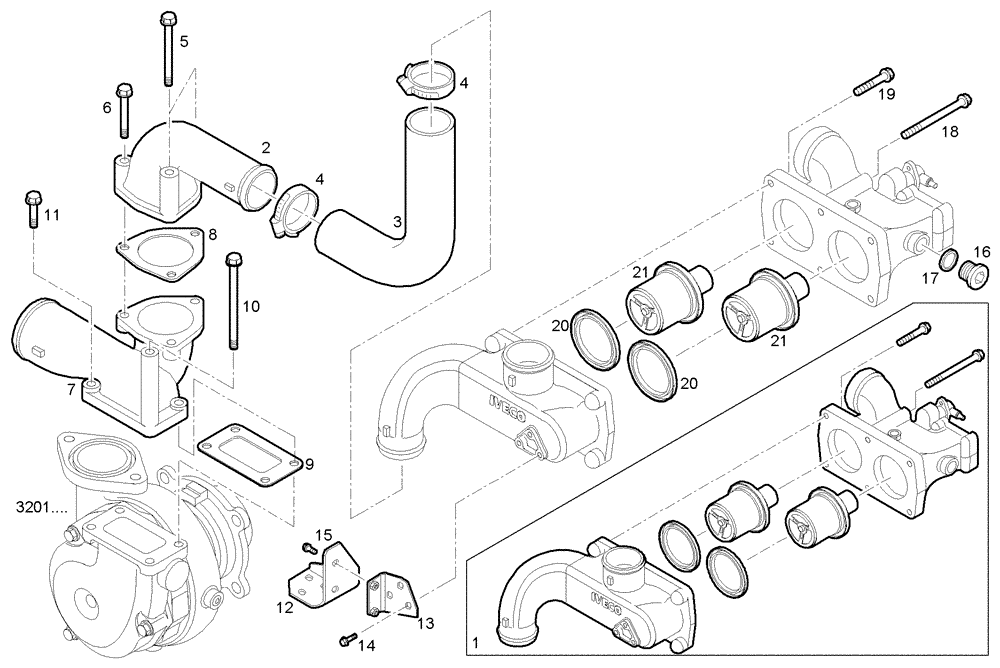

Запчасти Case IH FVAE2884X B200 (3260.011) - TEMPERATURE REGULATOR

1

504114244

HOUSING

THERMOSTAT BODY

1шт.

2

504096035

TUBE

WATER PIPE

1шт.

3

504095578

LARGE HOSE

WATER HOSE

1шт.

4

18088392

MOUNTING CLIP

CLIP, dia=16/25 MM

2шт.

5

16592525

BOLT,M8 x 1.25 x 70mm

HEXAGON BOLT, M8X70 MM

2шт.

6

16586725

BOLT,Hex, M8 x 1.25 x 40mm

HEXAGON BOLT, M8X1.25X40 MM

1шт.

7

504096634

TUBE

WATER PIPE

1шт.

8

504096749

GASKET

FLAT ENGINE GASKET

1шт.

9

504065725

GASKET

FLAT ENGINE GASKET

1шт.

10

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

2шт.

11

2852267

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

HEXAGON BOLT, M8X90 MM

2шт.

12

504117010

BRACKET

SUPPORT

1шт.

13

504117048

BRACKET

SUPPORT

1шт.

14

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X1,25X16 MM

6шт.

15

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

HEXAGON BOLT, M8X1,25X18 MM

2шт.

16

10273140

PLUG,Hex Skt, M18 x 1.5

THREADED PLUG, M18X1,5

1шт.

17

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

SEAL GASKET, dia=18X26 MM SP=1,5 MM

1шт.

18

16592625

SCREW,M8 x 80mm

HEXAGON BOLT, M8X80 MM

2шт.

19

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

4шт.

20

8039230

SEAL

WASHER

2шт.

MAINTENANCE PART

1шт.

21

504114246

THERMOSTAT

THERMOSTAT

2шт.

MAINTENANCE PART

1шт.
