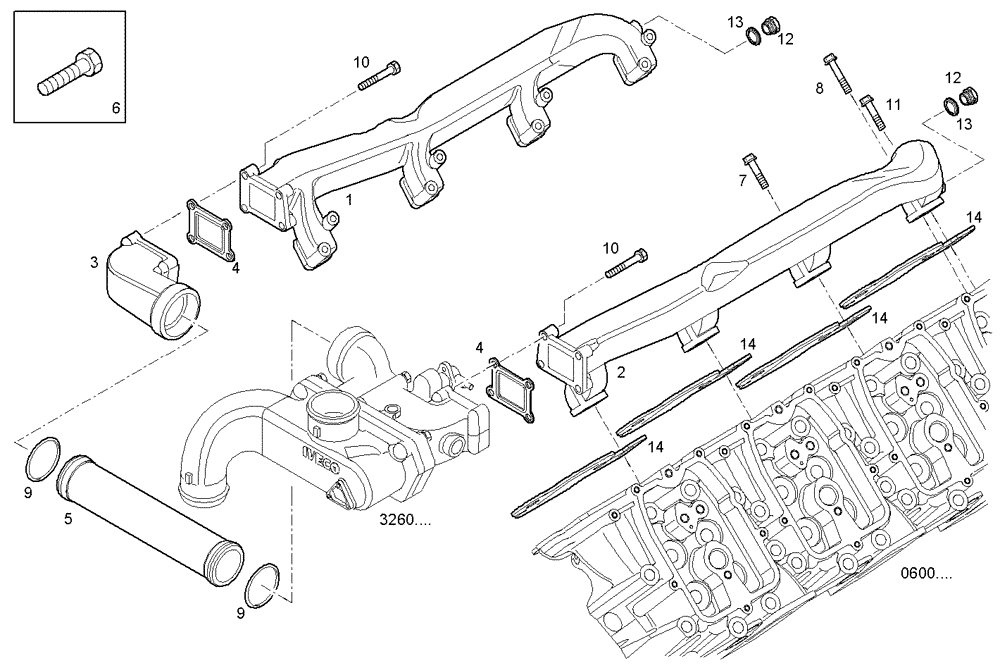

Запчасти Case IH FVAE2884X B200 (3230.040) - WATER PIPE water manifold

1

504208988

MANIFOLD

WATER MANIFOLD, RIGHT

1шт.

2

504208989

MANIFOLD

WATER MANIFOLD, LEFT

1шт.

3

504044298

ELBOW

WATER PIPE

1шт.

4

504049041

GASKET

INTAKE ELBOW GASK.

2шт.

5

504096325

TUBE

WATER PIPE

1шт.

6

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

4шт.

7

2852866

BOLT,Flng, M8 x 1.25 x 75mm, Cl 8.8

HEXAGON BOLT, M8X1,25X60 MM

6шт.

8

504067722

SCREW

HEXAGON BOLT, M8X1,25X75 MM

8шт.

9

17289881

O-RING

O-RING, dia=50,3 MM SP=3,5 MM

2шт.

10

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

HEXAGON BOLT, M8X1.25X20

8шт.

11

16592424

SCREW,M8 x 65mm

HEXAGON BOLT, M8X65 MM

2шт.

12

16992315

PLUG

THREADED PLUG, M14X1,5

2шт.

13

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

SEAL GASKET, dia=14X22 MM SP=1,5 MM

2шт.

14

504044304

GASKET

INTAKE ELBOW GASK.

8шт.
