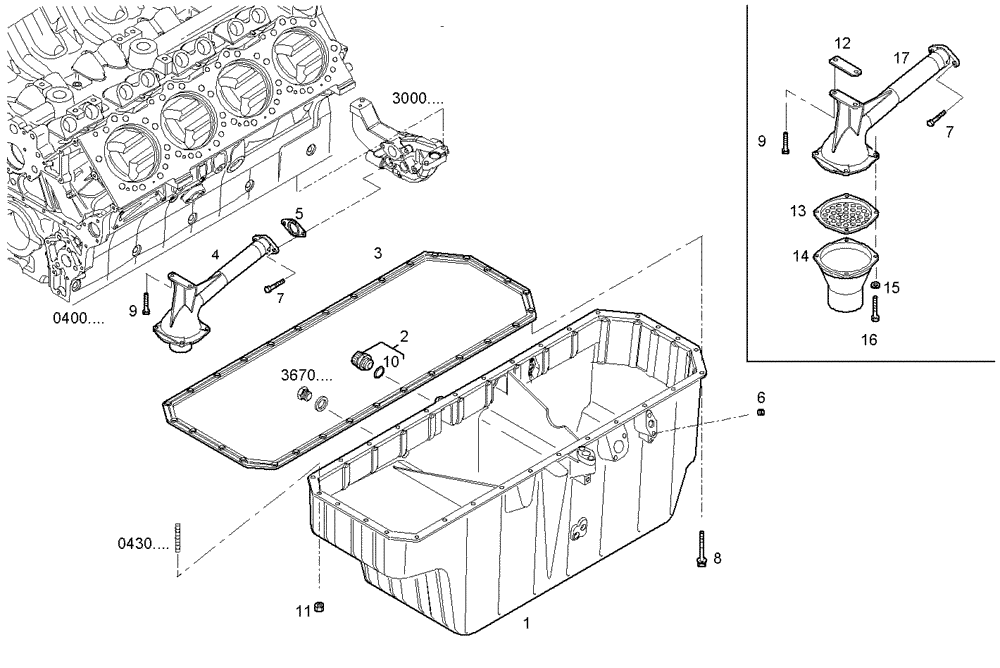

Запчасти Case IH FVAE2884X B200 (0420.222) - OIL SUMP

1

504090106

ENGINE OIL PAN

OIL SUMP

1шт.

2

504053131

PLUG

PLUG

1шт.

3

504041342

GASKET

OIL SUMP GASKET

1шт.

4

504090233

SUCTION STRAINER, UP TO 09-03-06

SPARE PART

1шт.

5

504043473

GASKET

FLAT ENGINE GASKET

1шт.

6

17847870

THREADED INSERT

THREADED INSERT, M8

4шт.

7

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

HEXAGON BOLT, M8X20 MM (10.9)

2шт.

8

504049517

SCREW

SCREW, M10X1,5X90 MM

24шт.

9

16586925

BOLT,M8 x 50mm

HEXAGON BOLT, M8X50 MM, FROM 10-03-06

2шт.

10

18064760

GASKET, dia=30X36 MM

GASKET

1шт.

11

17044825

NUT,Hex, M10 x 1.25

HEXAGON NUT, M10

6шт.

12

504210757

SPACER

SPACING BAR, FROM 10-03-06

1шт.

13

4759454

ENGINE OIL FILTER

FILTER, FROM 10-03-06

1шт.

14

8040601

COVER

COVER, FROM 10-03-06

1шт.

15

17798274

WASHER

SPRING WASHER, dia=8,2X14,9 MM, FROM 10-03-06

4шт.

16

16605525

SCREW

HEXAGON BOLT, M8X20 MM, FROM 10-03-06

4шт.

17

504206080

STRAINER ELEMENT

SUCTION STRAINER, FROM 10-03-06

1шт.

18

18064760

GASKET, dia=30X36 MM

GASKET

1шт.
