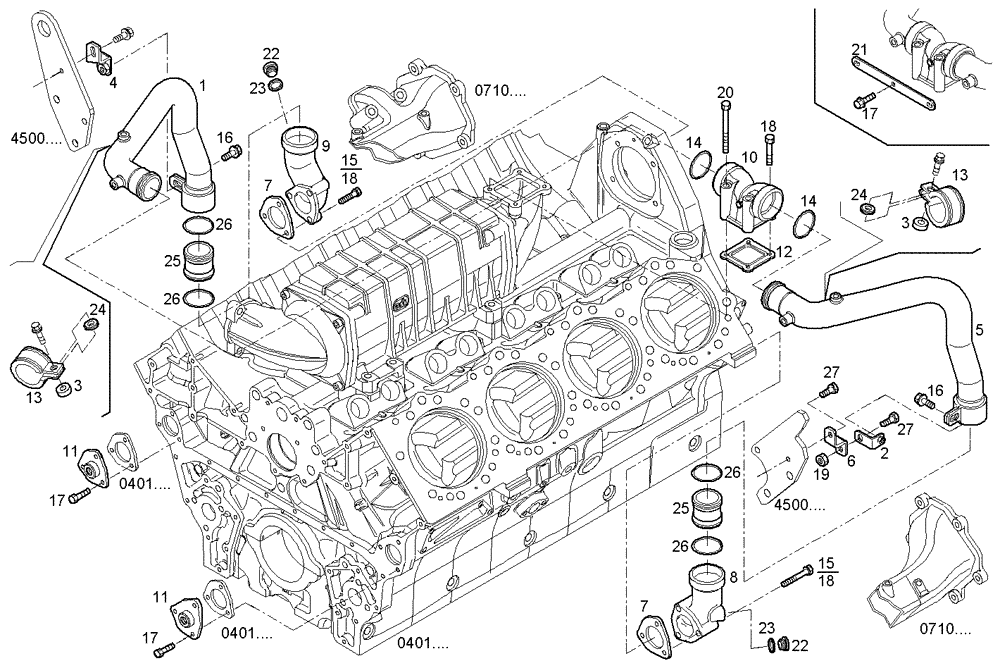

Запчасти Case IH FVAE2884X B200 (3210.349) - WATER LINES water outlet from oil heat exchanger

1

504171749

TUBE

WATER PIPE

1шт.

2

504173039

BRACKET

SUPPORT

1шт.

3

7302112

SPACER

SPACER, SP=7 MM

2шт.

4

504173051

BRACKET

SUPPORT

1шт.

5

504171714

PIPE

WATER PIPE

1шт.

6

504093923

RETAINER COLLAR

RETAINER

1шт.

7

504045914

GASKET

FLAT ENGINE GASKET

2шт.

8

504059916

PIPE

WATER PIPE

1шт.

9

504059917

PIPE

WATER PIPE

1шт.

10

504063275

TUBE

WATER PIPE

1шт.

11

504057355

COVER

COVER

2шт.

12

504063703

GASKET

FLAT ENGINE GASKET

1шт.

13

504183917

COLLAR CLAMP

FASTENING BRACKET

2шт.

14

4863369

O-RING

O-RING, dia=46,99x5,33 MM

2шт.

15

16592425

BOLT,M8 x 65mm

HEXAGON BOLT, M8X65 MM

4шт.

16

16673835

BOLT,Hex, M8 x 30mm

HEXAGON BOLT, M8X30 MM

2шт.

17

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X1,25X16 MM

6шт.

18

16586725

BOLT,Hex, M8 x 1.25 x 40mm

HEXAGON BOLT, M8X1.25X40 MM

4шт.

19

17964125

NUT

HEXAGON NUT, M8

1шт.

20

16588225

BOLT,Hex, M12 x 1.75 x 40mm

HEXAGON BOLT, M12X40 MM

2шт.

21

504074924

FLANGE

FLANGE

1шт.

22

16993911

PLUG

LOCK PLUG, M14X1,5

2шт.

23

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

SEAL GASKET, dia=14X22 MM SP=1,5 MM

2шт.

24

504184203

WASHER

WASHER

2шт.

25

504138011

SLEEVE

WATER PIPE

2шт.

26

4863369

O-RING

O-RING, dia=46,99x5,33 MM

4шт.

27

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

2шт.
