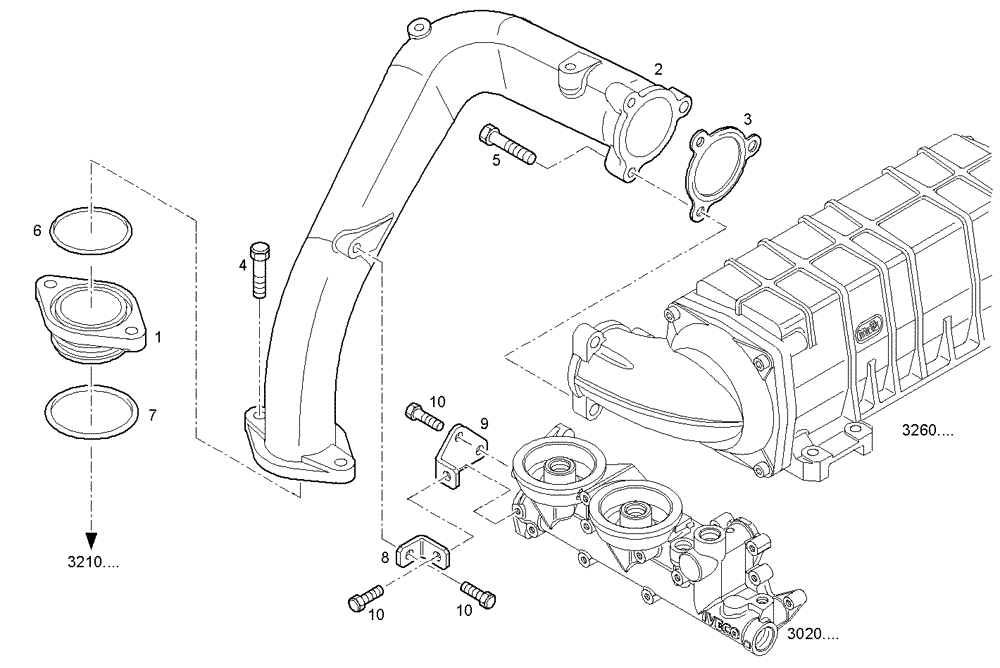

Запчасти Case IH FVAE2884X B200 (3210.249) - WATER LINES from dx pump to oil heat exchanger

1

504055352

PIPE

WATER PIPE

1шт.

2

504064587

PIPE

WATER PIPE

1шт.

3

504039293

GASKET

FLAT ENGINE GASKET

1шт.

4

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

2шт.

5

16673835

BOLT,Hex, M8 x 30mm

HEXAGON BOLT, M8X30 MM

3шт.

6

17290581

O-RING,72.62mm ID x 2.34mm Width

O-RING, dia=72,63X3,53 MM

1шт.

7

17296480

O-RING

O-RING, dia=5,33X69,21 MM

1шт.

8

504099905

BRACKET

SUPPORT

1шт.

9

504099909

BRACKET

SUPPORT

1шт.

10

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X16 MM

4шт.
