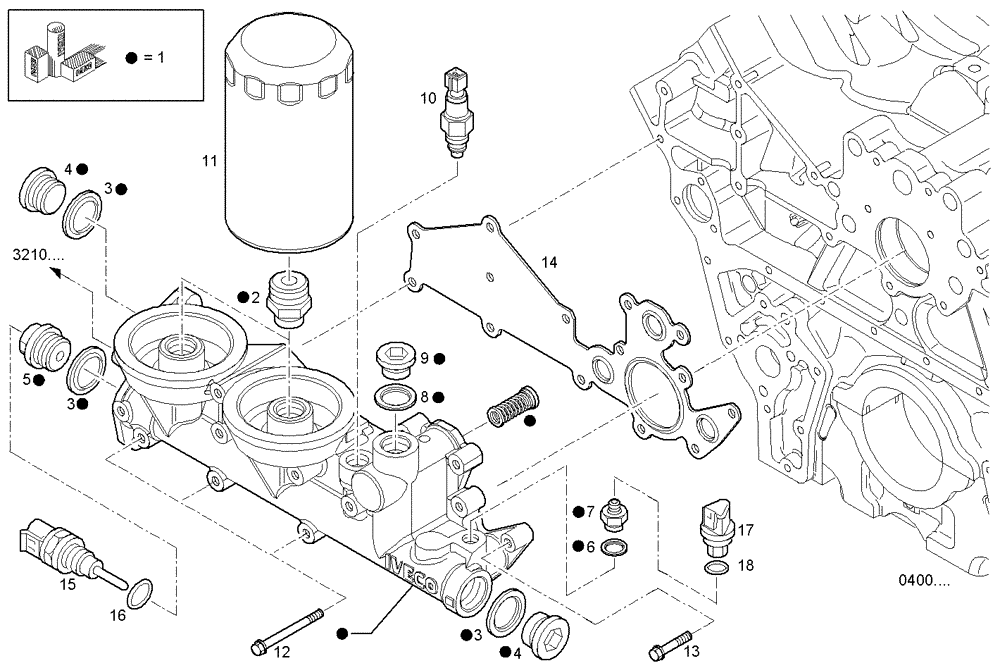

Запчасти Case IH FVAE2884X B200 (3020.085) - OIL FILTERS

1

504046229

FILTER HEAD

OIL FILTER SUPPORT, ASSY

1шт.

2

504045113

FITTING

THREADED UNION

2шт.

3

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

SEAL GASKET, dia=35 MM

3шт.

4

16993715

PLUG

THREADED PLUG

2шт.

5

504046492

FITTING

THREADED UNION

1шт.

6

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

1шт.

7

504044568

FITTING

THREADED UNION, M16X1,5-7/16"

1шт.

8

99432291

GASKET,28mm ID

SEAL GASKET, dia=28 MM

1шт.

9

10278301

PLUG,M28 x 1.5 x 11, Brass

LOCK PLUG, M28X1,5

1шт.

10

500351609

SENDER UNIT

SENSOR, OIL PRESSURE

1шт.

11

504067504

ENGINE OIL FILTER

OIL FILTER CARTRIDGE

2шт.

MAINTENANCE PART

1шт.

12

16598325

BOLT,Hex, M8 x 100mm

HEXAGON BOLT, M8X100 MM

8шт.

13

16586625

BOLT,M8 x 35mm

HEXAGON BOLT, M8X35 MM

6шт.

14

504044305

GASKET

FLAT ENGINE GASKET

1шт.

15

504046224

TEMPERATURE SENDER

TEMP. TRANSMITTER, 3/4"

1шт.

16

504046225

O-RING

SEAL GASKET

1шт.

17

504046223

SENSOR

SENSOR, Pressure

1шт.

18

504046227

O-RING

SEAL GASKET

1шт.
