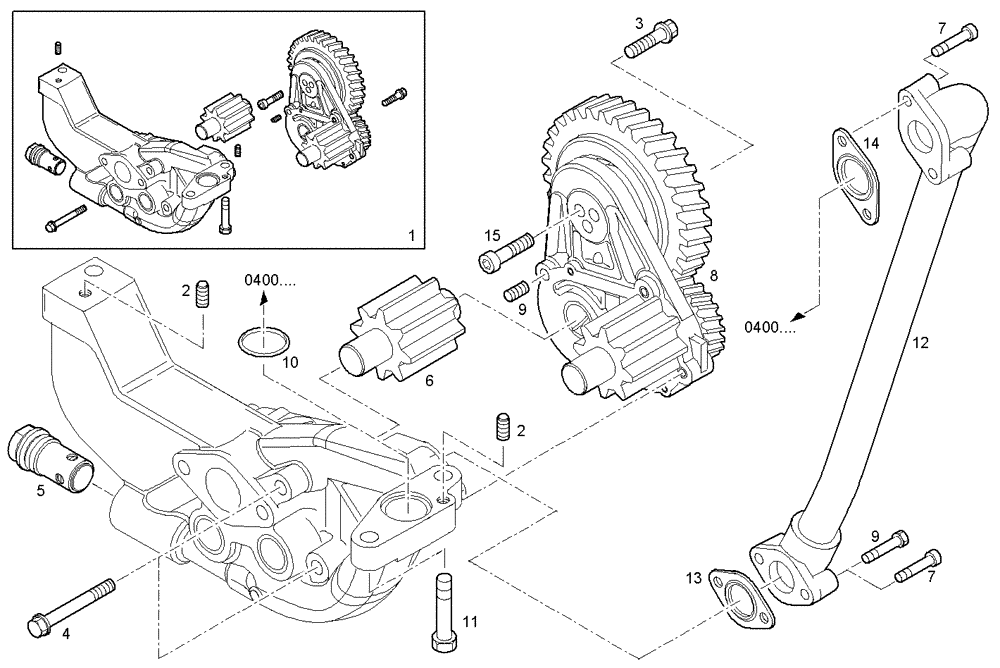

Запчасти Case IH FVAE2884X B200 (3000.054) - OIL PUMP

1

504115282

ENGINE OIL PUMP

LUBE OIL PUMP, ASSY

1шт.

2

10839610

DOWEL,M8 x 12mm

DOWEL PIN, dia=8 MM

4шт.

3

16673835

BOLT,Hex, M8 x 30mm

HEXAGON BOLT, M8X30 MM

2шт.

4

16592625

SCREW,M8 x 80mm

HEXAGON BOLT, M8X80 MM

2шт.

5

500359679

SAFETY VALVE

OIL PUMP VALVE

1шт.

6

504038627

GEAR

OIL PUMP INT.GEAR

1шт.

7

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

SOCKET-HEAD SCREW, M8X20 MM

4шт.

8

504115287

COVER

OIL PUMP COVER

1шт.

9

10839510

DOWEL,M6 x 9

DOWEL PIN

2шт.

10

14458281

O-RING,1.237" ID x 1.443" OD x 0.103"

O-RING, dia=31,42 MM SP=2,62 MM

1шт.

11

16587125

SCREW,M10

HEXAGON BOLT, M10X25 MM

3шт.

12

504100178

PIPE

OIL LINE

1шт.

13

504049043

GASKET

FLAT ENGINE GASKET

1шт.

14

504049044

GASKET

FLAT ENGINE GASKET

1шт.

15

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

CYLIND-HEAD SCREW, M8X30 MM

3шт.
