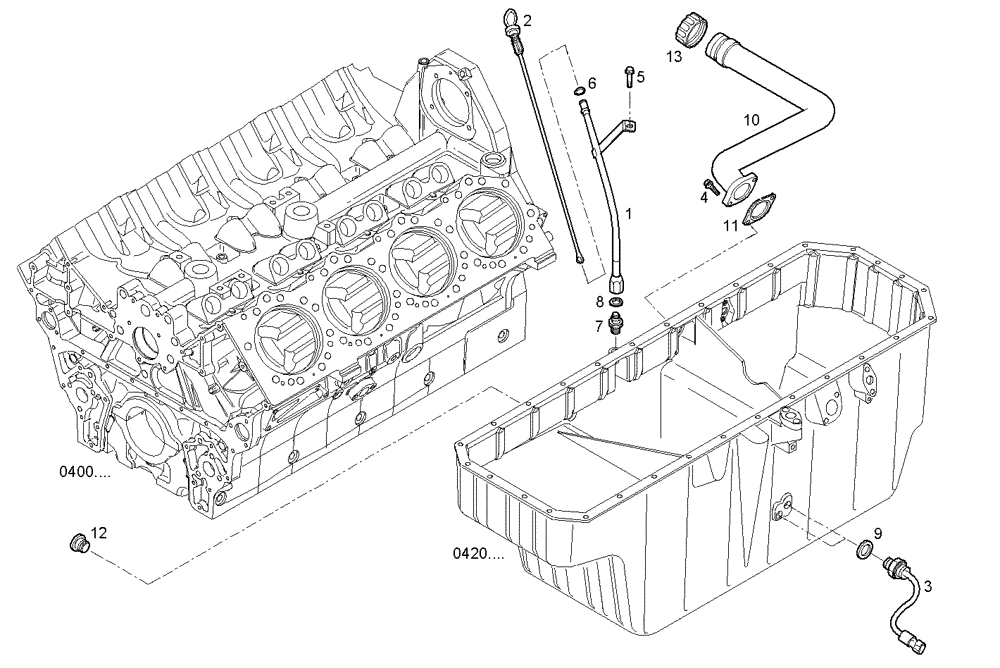

Запчасти Case IH FVAE2884X B200 (2700.022) - OIL DIPSTICK & FILLER PIPE

1

504090255

TUBE

OIL LEVEL TUBE

1шт.

2

504090253

DIPSTICK

OIL DIPSTICK

1шт.

3

504055244

SENSOR

SENSOR

1шт.

4

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

HEXAGON BOLT, M8X1.25X20

2шт.

5

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X1,25X16 MM

1шт.

6

17281981

GASKET

O-RING, dia=18,7 MM SP=2,6 MM

2шт.

7

504087366

FITTING

THREADED UNION

1шт.

8

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

SEAL GASKET, dia=18X26 MM SP=1,5 MM

1шт.

9

504069933

O-RING

SEAL GASKET, dia=19,18X2,46 MM

2шт.

10

504246925

NECK FILLER

OIL FILLER PIPE

1шт.

11

504064628

GASKET

GASKET

1шт.

12

504097424

PLUG

THREADED PLUG

1шт.

13

2852136

CAP,48mm ID x 56mm OD x 18mm W

OIL FILLER PLUG

1шт.
