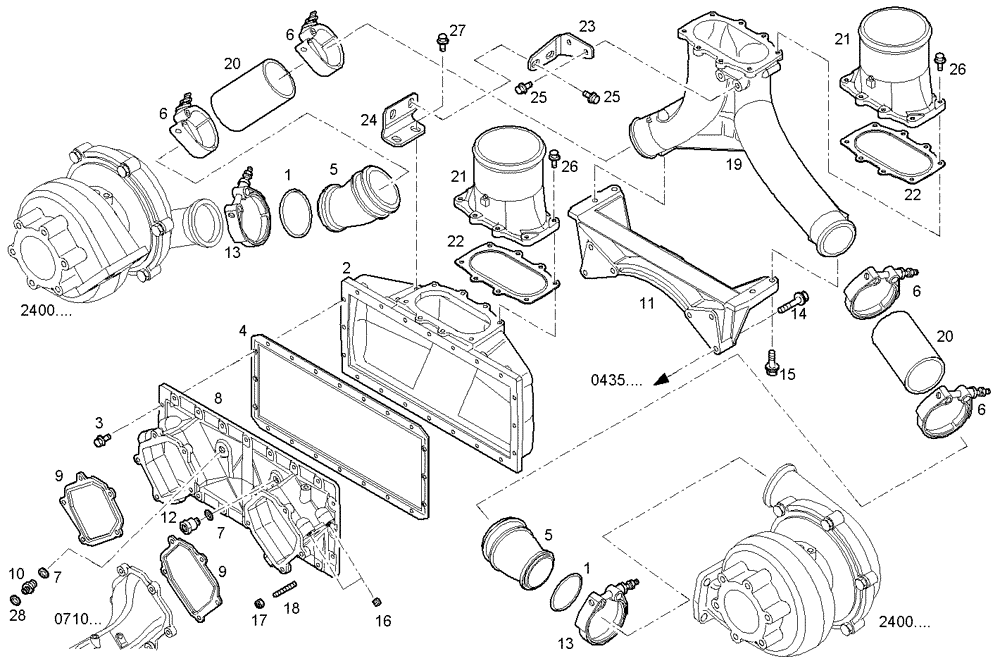

Запчасти Case IH FVAE2884X B200 (2420.256) - SUPERCHARGING LINES

1

17284481

GASKET

O-RING, dia=58,4 MM SP=2,6 MM

2шт.

2

504113882

CONVEYOR

AIR HOOD

1шт.

3

504049513

SCREW

HEXAGON BOLT

20шт.

4

504044894

GASKET

GASKET

1шт.

5

504090263

AIR DUCT

AIR PIPE/DUCT

2шт.

6

17769094

MOUNTING CLIP

CLIP

4шт.

7

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

2шт.

8

504074096

CONVEYOR

AIR HOOD

1шт.

9

504048947

GASKET

GASKET

2шт.

10

504044568

FITTING

THREADED UNION, M16X1,5-7/16"

1шт.

11

504086170

SUPPORT

SUPPORT

1шт.

12

504044567

FITTING

THREADED UNION

1шт.

13

504073342

MOUNTING CLIP

CLIP

2шт.

14

16587825

SCREW,Hex, M10 x 60mm, Cl 8.8

HEXAGON BOLT, M10X1,5X60 MM

6шт.

15

16587325

SCREW,Hex, M10 x 35mm

HEXAGON BOLT, M10X35 MM

4шт.

16

17847870

THREADED INSERT

THREADED INSERT, M8

11шт.

17

2852389

FLANGE NUT

HEXAGON NUT, M8

6шт.

18

13517024

STUD

STUD, M8X1,25X25

4шт.

19

504113895

MANIFOLD

AIR HOOD

1шт.

20

504104715

RUBBER SLEEVE

RUBBER SLEEVE

2шт.

21

504113884

AIR DUCT

AIR PIPE/DUCT

2шт.

22

504117545

GASKET

FLAT ENGINE GASKET

2шт.

23

504117957

BRACKET

SUPPORT

1шт.

24

504117969

BRACKET

SUPPORT

1шт.

25

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

HEXAGON BOLT, M8X1,25X18 MM

4шт.

26

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

16шт.

27

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

HEXAGON BOLT, M8X1.25X20

2шт.

28

504046227

O-RING

SEAL GASKET

1шт.
