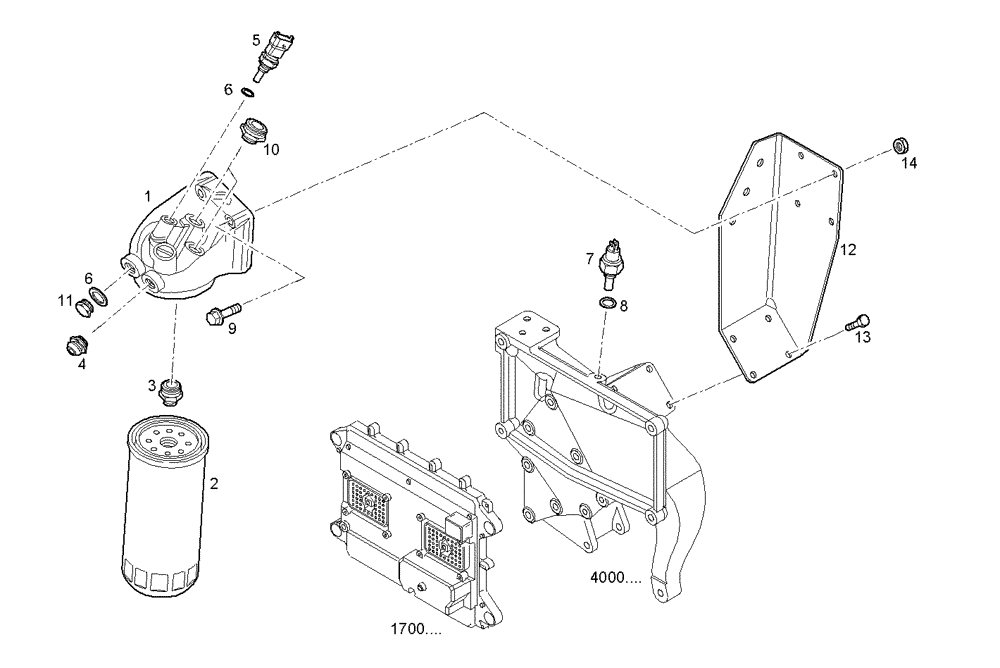

Запчасти Case IH FVAE2884X B200 (2093.006) - FUEL FILTER fuel filter element

1

504128483

FILTER HEAD

FUEL FILT.SUPPORT

1шт.

2

504128471

FUEL FILTER

FUEL FILTER CARTRIDGE

1шт.

MAINTENANCE PART

1шт.

3

504128553

FITTING

THREADED UNION

1шт.

4

500304562

BLEEDER VALVE

BREATHER PLUG

1шт.

5

500346074

SENDER UNIT

TRANSMITTER, Pressure

1шт.

6

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

4шт.

7

504046224

TEMPERATURE SENDER

TEMP. TRANSMITTER, 3/4"

1шт.

8

504046225

O-RING

SEAL GASKET

1шт.

9

16587525

BOLT,M10 x 45mm

HEXAGON BOLT, M10X45 MM

4шт.

10

16500315

HYD CONNECTOR

THREADED UNION, M16X1,5 - M18X1,5

1шт.

11

10300714

PLUG,M16 x 1.5 x 14

THREADED PLUG, M16X1,5

1шт.

12

504229722

SUPPORT

FUEL FILT.SUPPORT

1шт.

13

18139424

SCREW,Hex, M10 x 20mm

HEXAGON BOLT, M10X20 MM

4шт.

14

17044825

NUT,Hex, M10 x 1.25

HEXAGON NUT, M10

4шт.
