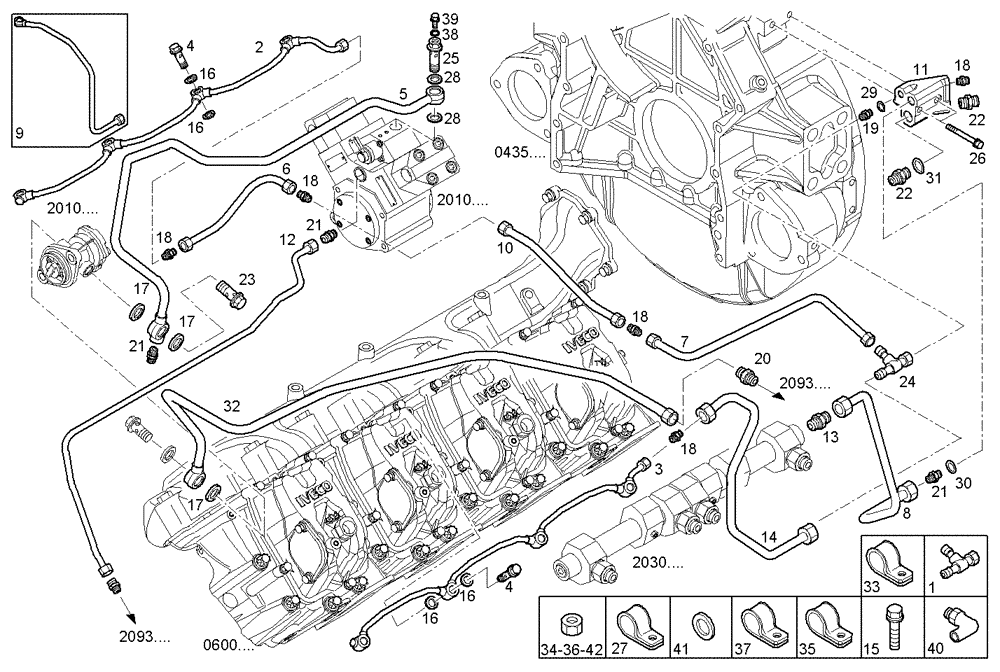

Запчасти Case IH FVAE2884X B200 (2030.320) - FUEL LINES

1

16504811

3 WAY CONNECTION

T-COUPLING

2шт.

2

504071550

RETURN PIPE

FUEL LINE, RIGHT

1шт.

3

504071551

RETURN PIPE

FUEL LINE, LEFT

1шт.

4

504034362

BANJO BOLT

SCREW CONNECTOR, M10X1,5

8шт.

5

504147766

PIPE

FUEL LINE, from HPP to LPP

1шт.

6

504079220

RETURN PIPE

FUEL LINE, fuel return line

1шт.

7

504074221

RETURN PIPE

FUEL LINE, fuel return line

1шт.

8

504074227

RETURN PIPE

FUEL LINE, fuel return line

1шт.

9

504074230

RETURN PIPE

FUEL LINE, fuel return line

1шт.

10

504079223

RETURN PIPE

FUEL LINE, fuel return line

1шт.

11

504074653

FITTING

CHOCK

1шт.

12

504230998

PIPE

FUEL LINE, from filter to HPP

1шт.

13

504074830

FITTING

PIPE SOCKET, M18

1шт.

14

504074224

RETURN PIPE

FUEL LINE, fuel return line

1шт.

15

16592225

BOLT,M8 x 55mm

HEXAGON BOLT, M8X55 MM

1шт.

16

87665413

SEALING WASHER,7.9mm ID x 17.0mm OD x 1.5mm Thk

SEAL GASKET, dia=10X17 MM SP =1,5

16шт.

17

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

SEAL GASKET, dia=18X26 MM SP=1,5 MM

3шт.

18

16501611

HYD CONNECTOR

PIPE SOCKET, M14X1,5

5шт.

19

16500114

UNION

THREADED UNION, M12X1,5 - M14X1,5

1шт.

20

16500214

THREADED UNION, M14X1,5/M16X1,5

SPARE PART

1шт.

21

41031569

FITTING

THREADED UNION, M16X1,5 - M18X1,5 MM"

4шт.

22

16500514

FITTING

THREADED UNION, M22X1,5 - M26X1,5

2шт.

23

4864085

BANJO BOLT

SCREW CONNECTOR, M18X1,5

1шт.

24

16504614

TEE

T-COUPLING, M14X1,5

1шт.

25

504121629

BANJO BOLT

SCREW CONNECTOR

1шт.

26

2852323

SCREW,M8 x 1.25 x 14mm

HEXAGON BOLT, M8X14 MM

4шт.

27

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

PIPE CLIP, dia=8 MM

2шт.

28

99469378

WASHER, SEALING

WASHER, dia=22X30 MM

2шт.

29

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

SEAL GASKET, dia=14X22 MM SP=1,5 MM

1шт.

30

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

3шт.

31

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

SEAL GASKET, dia=22X30 MM SP=1,5 MM

1шт.

32

504231356

PIPE

FUEL LINE, from LPP to filter

1шт.

33

17316590

BRACKET

PIPE CLIP, dia=12 MM

1шт.

34

11260611

TUBE NUT

NUT, M18X1,5

2шт.

35

10450590

CLAMP,18mm, Coat, 9mm Bolt Hole, P Type

PIPE CLIP, dia=18 MM

2шт.

36

17044735

NUT,Hex, M8

NUT, M8

1шт.

37

17316690

RETAINER COLLAR

FASTENING BRACKET, dia=20,5 MM

2шт.

38

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

SEAL GASKET, dia=12X20 MM SP=1,5 MM

1шт.

39

504144621

PLUG

THREADED PLUG, M12X1

1шт.

40

16502714

ELBOW

ELBOW COUPLING, M16X1,5

2шт.

41

98474309

GASKET,16mm ID x 24mm OD x 1.9mm Thk

WASHER, dia=16X24 MM SP=1,9 MM

1шт.

42

16508815

NUT

NUT

1шт.
