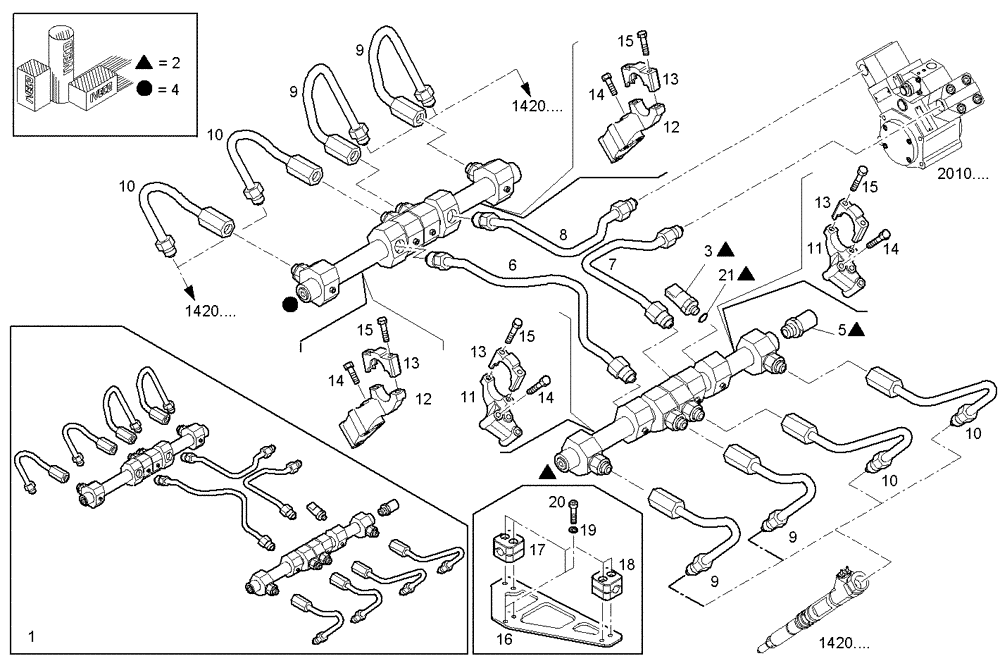

Запчасти Case IH FVAE2884X B200 (2030.204) - FUEL LINES

1

504215523

INJECTION PIPE

INJECTION LINE SET, ASSY

1шт.

2

504215523

INJECTION PIPE

HYDRAULIC CYLINDER, LEFT ASSY

1шт.

3

504043154

SENSOR

SENSOR

1шт.

4

504215527

INJECTION PIPE

HYDRAULIC CYLINDER, RIGHT ASSY

1шт.

5

504043158

VALVE PRESSURE RELIE

VALVE

1шт.

6

504215536

INJECTION PIPE

FUEL LINE

1шт.

7

504215534

INJECTION PIPE

FUEL LINE

1шт.

8

504215535

INJECTION PIPE

FUEL LINE

1шт.

9

504215530

INJECTION PIPE

FUEL LINE

4шт.

10

504215533

INJECTION PIPE

FUEL LINE

4шт.

11

504080479

BRACKET

SUPPORT, RIGHT ASSY

2шт.

12

504080488

BRACKET

SUPPORT, LEFT ASSY

2шт.

13

504039185

COVER

COVER

4шт.

14

16586925

BOLT,M8 x 50mm

HEXAGON BOLT, M8X50 MM

12шт.

15

16586725

BOLT,Hex, M8 x 1.25 x 40mm

HEXAGON BOLT, M8X1.25X40 MM

8шт.

16

504097534

BRACKET

SUPPORT

1шт.

17

504097548

CLAMP

CHOCK

1шт.

18

504097549

CLAMP

CHOCK

2шт.

19

17094611

WASHER

WASHER

6шт.

20

16689425

SCREW

SOCKET-HEAD SCREW

6шт.

21

504120835

SEALING WASHER

SEAL GASKET

1шт.
