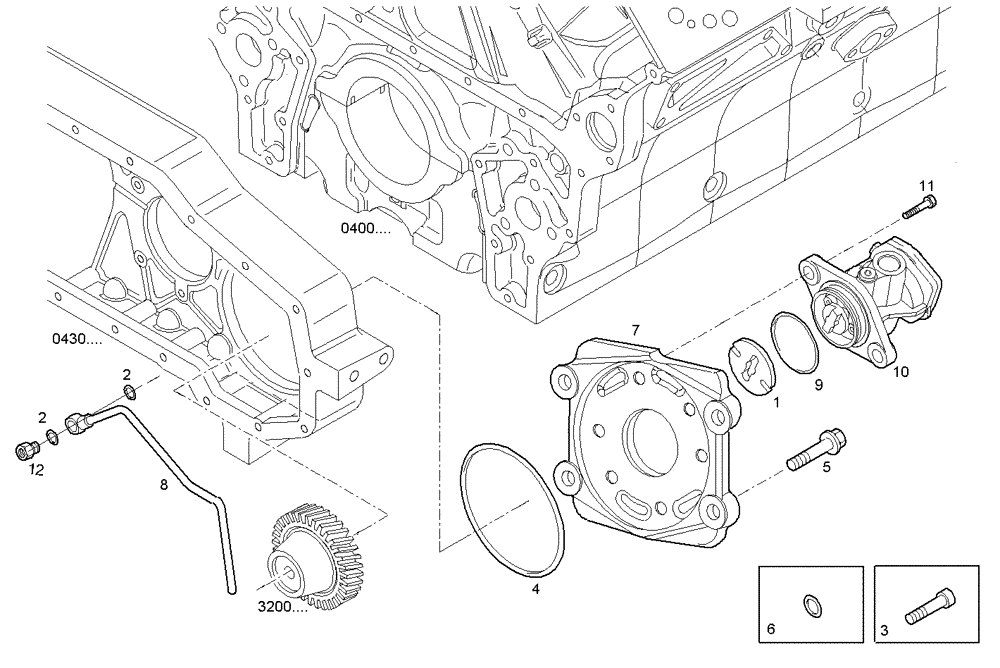

Запчасти Case IH FVAE2884X B200 (2010.056) - FUEL PUMP low pressure

1

504058399

COUPLING JOINT

FLEXIBLE COUPLING

1шт.

2

98474305

SEALING WASHER

WASHER, dia=10X17 MM SP=2,3

2шт.

3

2853970

BOLT

HEXAGON BOLT, M6X10 MM

1шт.

4

17292581

SEALING RING

O-RING, dia=3,53X136,1 MM

1шт.

5

16588125

BOLT,M12 x 1.75 x 35mm

HEXAGON BOLT, M12X35 MM

4шт.

6

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

WASHER, dia=6X12 MM

1шт.

7

504088838

SPACER

SPACING BAR

1шт.

8

504101003

PIPE

OIL LINE

1шт.

9

504060288

O-RING

O-RING

1шт.

10

504129158

FEED PUMP

FUEL PUMP

1шт.

11

16675735

SCREW

HEXAGON BOLT, M10X25 MM

2шт.

12

504049545

HYD CONNECTOR

THREADED UNION, M10X1,5

1шт.
