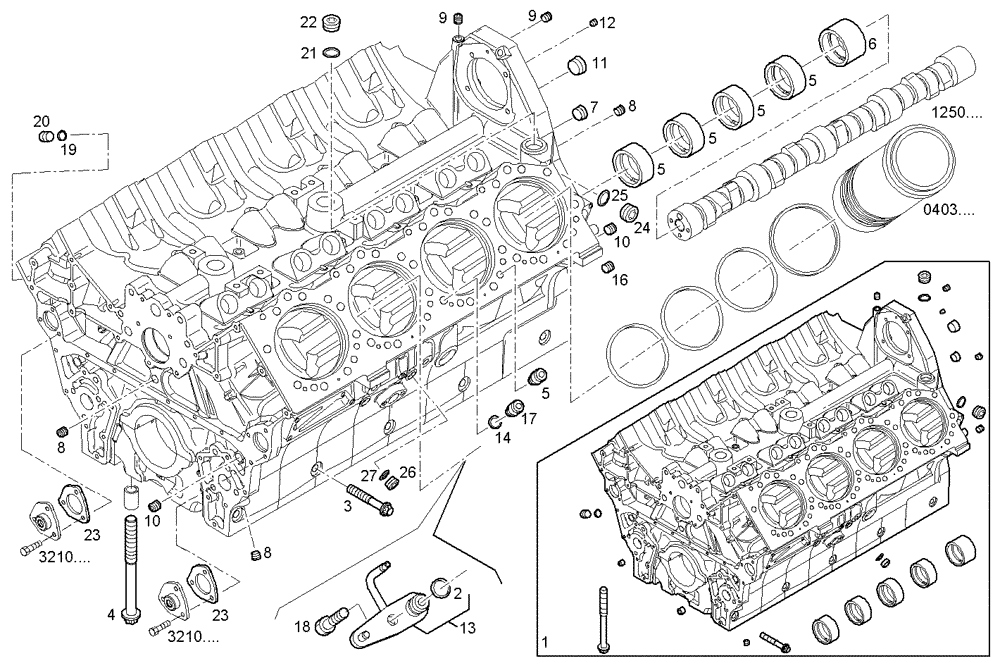

Запчасти Case IH FVAE2884X B200 (0401.048) - CRANKCASE

1

504116336

CYLINDER BLOCK

CRANKCASE, ASSY

1шт.

2

17278081

O-RING

O-RING, dia=10,82X1,78 MM

8шт.

3

504030440

SCREW

HEXAGON BOLT

10шт.

4

504116246

SCREW

CRAHKSFT.BEAR.STUD

10шт.

5

504029407

BUSHING

CAMSHAFT BEARING

4шт.

6

504029406

BUSHING

CAMSHAFT BEARING

1шт.

7

98475100

PLUG

THREADED PLUG, R3/4x12

2шт.

8

504051237

PLUG

THREADED PLUG, DIAM=1/4"

4шт.

9

504051236

PLUG,Threaded, 1/8"

THREADED PLUG, DIAM=1/8"

3шт.

10

504051238

PLUG,Threaded, 3/8" Dia

THREADED PLUG, DIAM=3/8"

4шт.

11

16995111

PLUG,M35 x 1.5

THREADED PLUG, M35X1,5

1шт.

12

504036758

SCREW

SCREW

4шт.

13

504034779

JET

OIL NOZZLE

8шт.

14

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

O-RING, 1,78x9,25

8шт.

15

10839810

DOWEL,12mm OD x 18mm L

DOWEL PIN

8шт.

16

10838010

DOWEL

DOWEL PIN, dia=16 MM

2шт.

17

4671990

DOWEL

DOWEL PIN

8шт.

18

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X1,25X16 MM

8шт.

19

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

SEAL GASKET, dia=18X26 MM SP=1,5 MM

1шт.

20

16993315

PLUG

THREADED PLUG

1шт.

21

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

SEAL GASKET, dia=35 MM

1шт.

22

16993715

PLUG

THREADED PLUG

1шт.

23

504045914

GASKET

FLAT ENGINE GASKET

2шт.

24

16993715

PLUG

THREADED PLUG

1шт.

25

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

SEAL GASKET, dia=35 MM

1шт.

26

16993315

PLUG

THREADED PLUG

1шт.

27

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

SEAL GASKET, dia=18X26 MM SP=1,5 MM

1шт.
