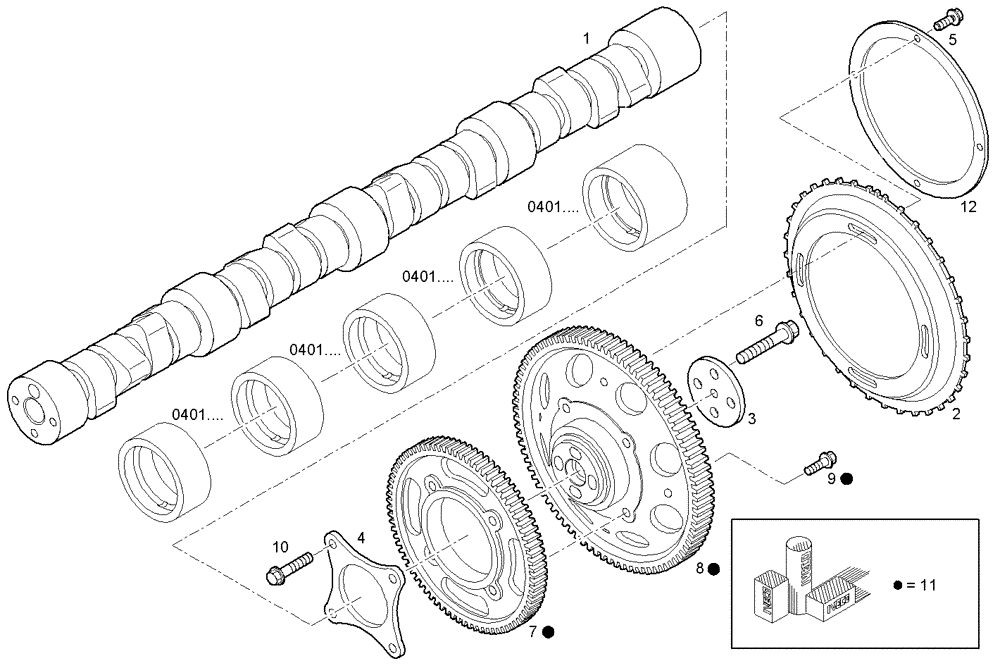

Запчасти Case IH FVAE2884X B200 (1250.087) - TIMING PARTS

1

504115290

CAMSHAFT

CAMSHAFT, ASSY

1шт.

2

504082299

CROWN WHEEL

PLATE

1шт.

3

504036918

SPACER

SPACING BAR

4шт.

4

504029690

BACKING PLATE

PLATE

1шт.

5

504037177

SCREW

HEXAGON BOLT

4шт.

6

16678934

SCREW

HEXAGON BOLT, M12X80 MM

4шт.

7

504036031

IDLER GEAR

CAMSHAFT PINION

1шт.

8

504082423

GEAR

TIMING INTERM.GEA

1шт.

9

16675835

SCREW,M10 x 30mm

HEXAGON BOLT, M10X30 MM

4шт.

10

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

HEXAGON BOLT, M8X1.25X20

4шт.

11

504082435

GEAR

CAMSHAFT PINION, ASSY

1шт.

12

504082401

SPACER

SPACING BAR

1шт.
