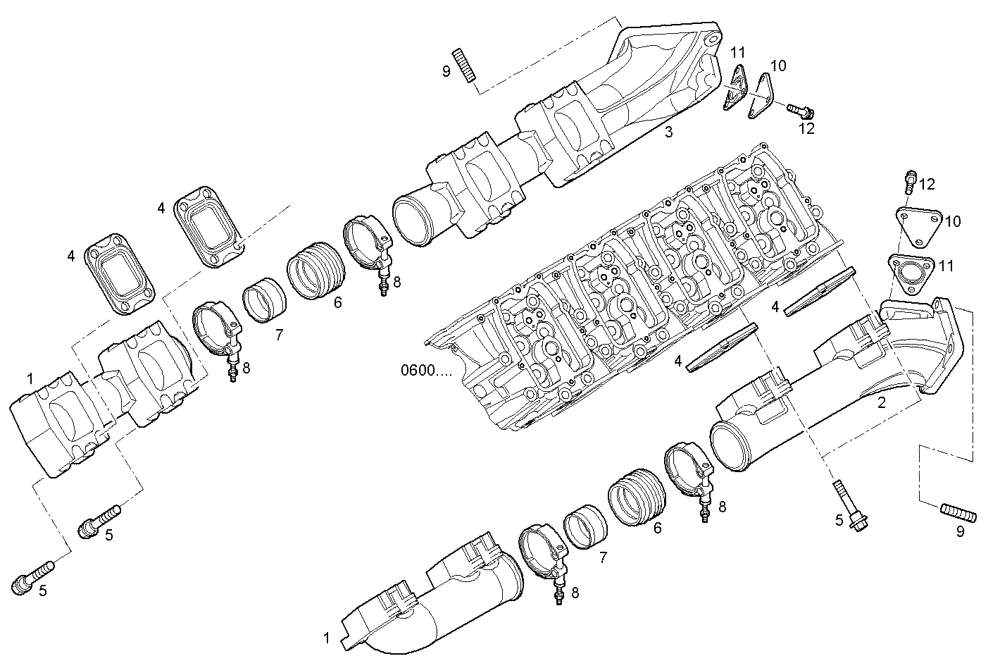

Запчасти Case IH FVAE2884X B200 (0760.198) - EXHAUST MANIFOLD

1

504055335

EXHAUST MANIFOLD

EXHAUST MANIFOLD, front side

2шт.

2

504219558

EXHAUST MANIFOLD

EXHAUST MANIFOLD, LEFT

1шт.

3

504219557

EXHAUST MANIFOLD

EXHAUST MANIFOLD, RIGHT

1шт.

4

504082422

MANIFOLD GASKET

EXH. MANIFOLD GKT

8шт.

5

504224027

BOLT,Flng, M10 x 1.5

HEXAGON BOLT, M10 x 1,5

32шт.

6

504035132

COUPLING RING

CONNECTOR SLEEVE

2шт.

7

504034976

COUPLING RING

RING

2шт.

8

504073805

MOUNTING CLIP

CLIP

4шт.

9

504137528

STUD

STUD, M10 x 1,5 x 45mm

8шт.

10

504093971

EXHAUST MANIFOLD

COVER

2шт.

11

504054952

GASKET

GASKET

2шт.

12

16600277

SCREW,Hex, M8 x 18mm

HEXAGON BOLT, M8 x 18mm

6шт.
