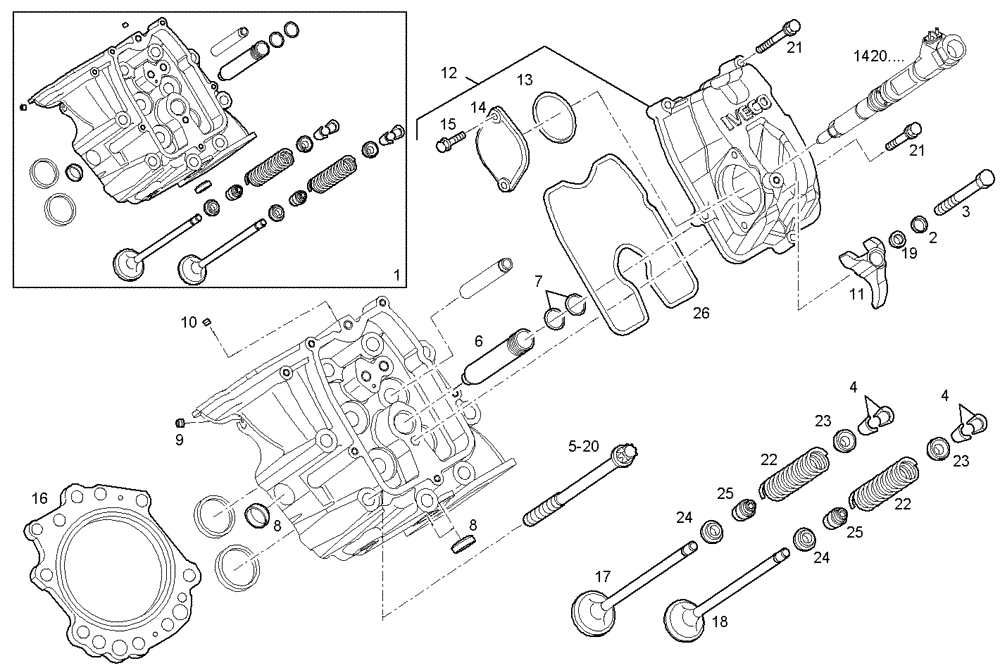

Запчасти Case IH FVAE2884X B200 (0600.182) - CYLINDER HEAD

1

504162554

CYLINDER HEAD

CYLINDER HEAD, ASSY

8шт.

2

504046374

SPRING WASHER

SPRING WASHER

8шт.

3

16709634

SCREW

CYLIND-HEAD SCREW, NM10X70 MM

8шт.

4

4833051

RETAINER

VALVE CONE

64шт.

5

504076961

SCREW

HEXAGON BOLT, M15X170 MM

48шт.

6

504030171

HOLDER

NOZZLE HOLDER SEAT

8шт.

7

14453881

O-RING,23.52mm ID x 1.78" Width

O-RING, dia=23,5 MM SP=1,7 MM

16шт.

8

16990670

PLUG,Lock, 22mm Dia

LOCK PLUG, dia=22 MM

40шт.

9

504051236

PLUG,Threaded, 1/8"

THREADED PLUG, DIAM=1/8"

8шт.

10

17318511

PLUG

THREADED PLUG, M6X1

8шт.

11

504027856

BRACKET

FASTENING BRACKET

8шт.

12

504044100

COVER

CYL. HEAD COVER, ASSY

8шт.

13

17284581

O-RING

O-RING, dia=59,99 x 2,62 MM

16шт.

13

504155657

COVER

O-RING, dia=60,05 x 1,78 MM

16шт.

14

504039531

COVER

COVER, int. dia = 60,70 MM

16шт.

14

504155657

COVER

COVER, int. dia = 62,52 MM

16шт.

15

18137825

BOLT,Hex, M6 x 16mm

HEXAGON BOLT, M6X16

32шт.

16

504029013

CYLINDER HEAD

CYL.HEAD GASKET

8шт.

17

504120722

STD INLET VALVE

INLET VALVE

16шт.

18

504078483

STD EXHAUST VALVE

EXHAUST VALVE

16шт.

19

504046468

WASHER

WASHER

8шт.

20

504076783

SCREW

HEXAGON BOLT, M15X185 MM

16шт.

21

504049514

SCREW

HEXAGON BOLT, M8X1,25X40 MM

40шт.

22

4814897

SPRING

ENGINE VALV.SPRING

32шт.

23

4675983

CUP

SPRING CAP, TOP

32шт.

24

98458427

CUP

SPRING CAP, BOTTOM

32шт.

25

40101874

SEALING RING

SHAFT SEAL

32шт.

26

98481105

GASKET

HEAD COVER GASKET

8шт.
