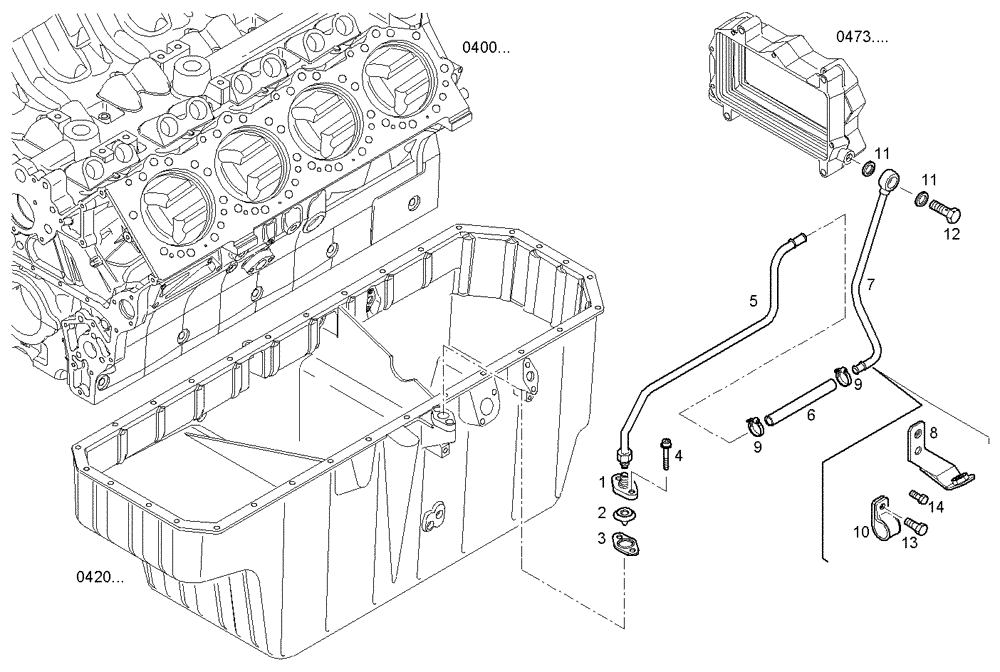

Запчасти Case IH FVAE2884X B200 (0473.002/03) - COALESCE. FILTER GROUP

1

504075263

FLANGE

PIPE SOCKET

1шт.

2

504036532

CHECK VALVE

VALVE

1шт.

3

504075235

GASKET

FLAT ENGINE GASKET

1шт.

4

16586425

BOLT,M8 x 25mm

HEXAGON BOLT, M8X25 MM

2шт.

5

504095085

PIPE

BREATHER PIPE

1шт.

6

504095075

RUBBER SLEEVE

RUBBER SLEEVE

1шт.

7

504113917

PIPE

BREATHER PIPE

1шт.

8

504093757

BRACKET

SUPPORT

1шт.

9

18088392

MOUNTING CLIP

CLIP, dia=16/25 MM

2шт.

10

17316592

COLLAR

PIPE CLIP

1шт.

11

98474309

GASKET,16mm ID x 24mm OD x 1.9mm Thk

WASHER, dia=16X24 MM SP=1,9 MM

2шт.

12

16511414

BANJO BOLT

SCREW CONNECTOR

1шт.

13

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

HEXAGON BOLT, M8X1,25X16 MM

1шт.

14

2852323

SCREW,M8 x 1.25 x 14mm

HEXAGON BOLT, M8X14 MM

1шт.
