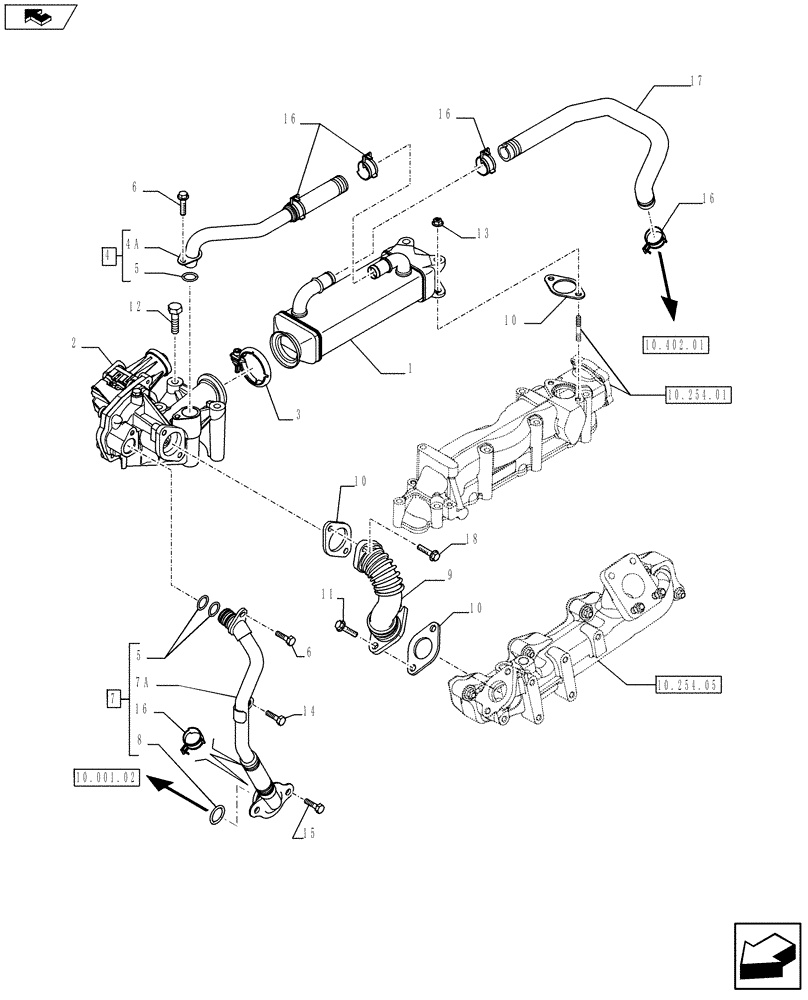

Запчасти Case IH F5HFL413B A002 (10.254.06) - EXHAUST MANIFOLD (5801504641) (10) - ENGINE

1

5801495578

HEAT EXCHANGER

1шт.

2

5801520470

CONTROL VALVE

1шт.

3

504385412

MOUNTING CLIP

1шт.

4

5801459454

PIPE

ASSY Contains Ref.4A, 5

1шт.

4a

NSS

NOT SOLD SEPARAT

1шт.

5

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

6

2853118

BOLT,Hex, M6 x 1 x 18mm

2шт.

7

5801385612

TUBE

ASSY Contains Ref.6, 7A, 14, 15, 16

1шт.

7a

NSS

NOT SOLD SEPARAT

1шт.

8

17289181

O-RING

SEAL WASHER

1шт.

9

504382200

JUNCTION

1шт.

10

504341194

GASKET

3шт.

11

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

12

16598325

BOLT,Hex, M8 x 100mm

3шт.

13

2852389

FLANGE NUT

2шт.

14

2852323

SCREW,M8 x 1.25 x 14mm

1шт.

15

4798845

BOLT,M8 x 1.25 x 16.50mm

2шт.

16

4893234

HOSE CLAMP

3шт.

17

5801501991

SLEEVE

1шт.

18

16673735

BOLT,Hex, M8 x 1.25 x 25mm

2шт.
