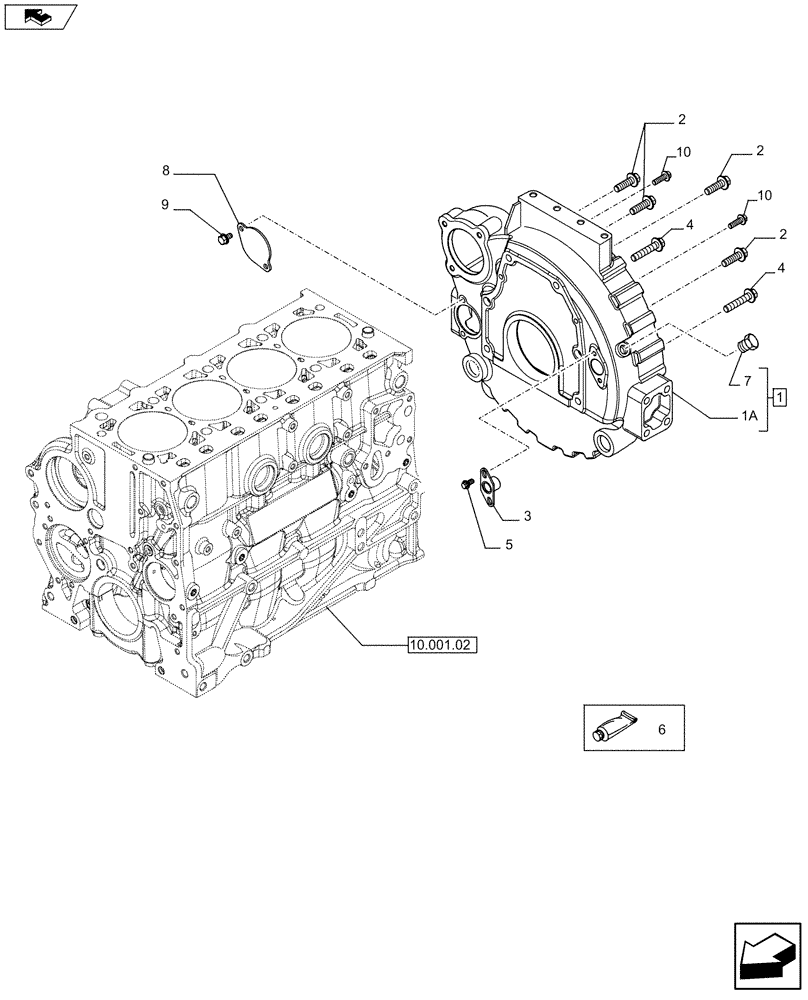

Запчасти Case IH F5HFL413B A002 (10.103.03) - FLYWHEEL CASE (504191985) (10) - ENGINE

1

504326302

HOUSING

ASSY Contains Ref.1A, 7

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

16678035

BOLT

4шт.

3

504268669

PLATE

1шт.

4

16678435

BOLT

M12 x 60 mm

6шт.

5

504351177

M8 x 1,25

SCREW,M8 x 1.25

2шт.

6

2995644

SEALANT

1шт.

7

4741955

PLUG

1шт.

8

4895155

COVER

1шт.

9

2852323

SCREW,M8 x 1.25 x 14mm

2шт.

10

16673735

BOLT,Hex, M8 x 1.25 x 25mm

2шт.
