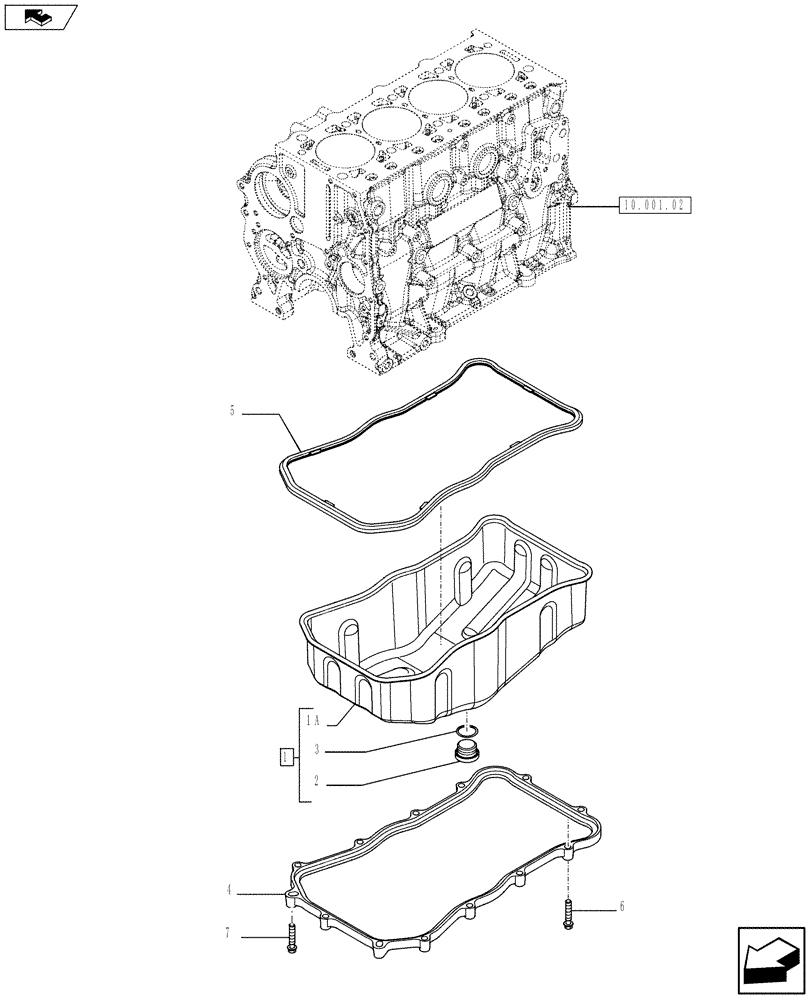

Запчасти Case IH F5HFL413B A002 (10.102.01) - OIL SUMP & RELATED PARTS (504387314) (10) - ENGINE

1

504179445

ENGINE OIL PAN

- ASSY Contains Ref.1A, 2, 3

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

3

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

4

5801363457

SPACER

1шт.

5

504179443

OIL PAN GASKET SET

1шт.

6

16586625

BOLT,M8 x 35mm

M8 x 35 mm

11шт.

7

504049517

SCREW

M10 x 1,5 x 90

2шт.
