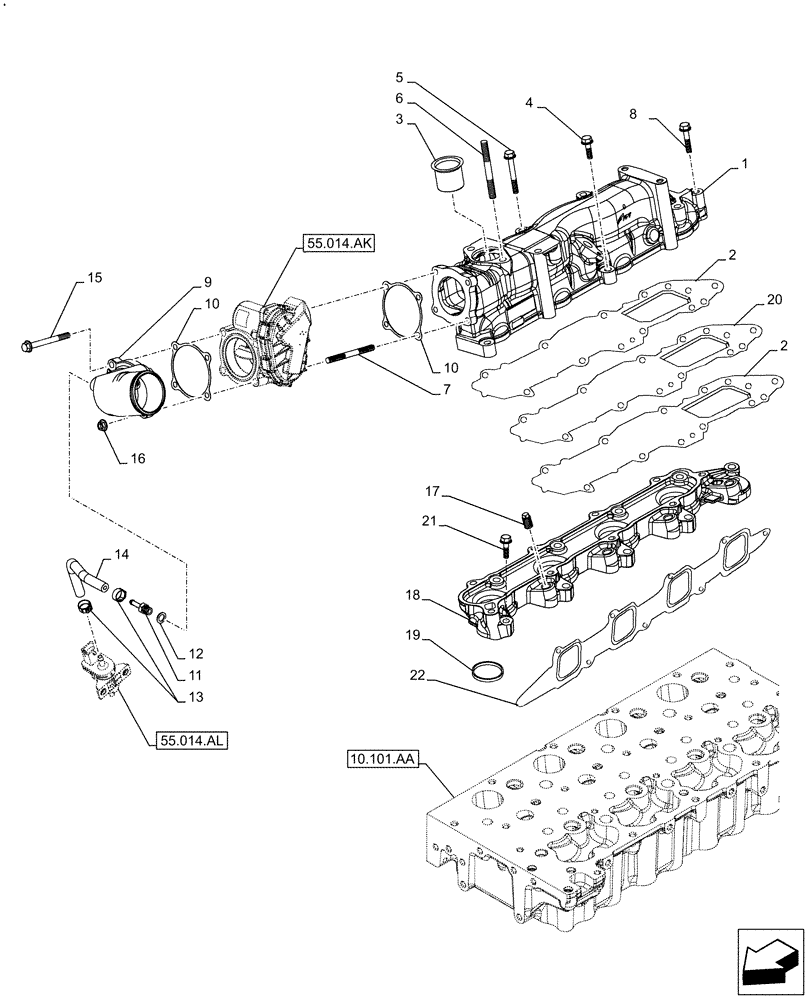

Запчасти Case IH F5GFL413A C008 (10.254.AM) - INTAKE & EXHAUST MANIFOLD (10) - ENGINE

1

5801715119

ELBOW

Intake manifold

1шт.

2

5801705579

GASKET

Intake manifold

1шт.

3

504380983

FITTING

Intake manifold

1шт.

4

16727724

STUD

1шт.

5

4895432

SCREW,M8 x 1.25 x 70mm

6шт.

6

13518021

STUD,M8 x 70mm L

2шт.

7

16728524

STUD

2шт.

8

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

3шт.

9

5801469424

INLET MANIFOLD

1шт.

10

504387920

GASKET

Intake manifold

2шт.

11

5801376672

UNION

Intake manifold

1шт.

12

17749985

GASKET

Intake manifold

1шт.

13

18199070

MOUNTING CLIP

2шт.

14

5801404363

TUBE

Intake manifold

1шт.

15

16597524

BOLT,Hex, M6 x 65mm, Cl 8.8

2шт.

16

17044625

NUT,Hex, M6

2шт.

17

16592225

BOLT,M8 x 55mm

4шт.

18

5801701355

SPACER

Intake manifold

1шт.

19

5801363175

GASKET

Intake manifold

4шт.

20

5801705591

SPACER

Intake manifold

1шт.

21

16673835

BOLT,Hex, M8 x 30mm

5шт.

22

5801752064

GASKET

Intake manifold

1шт.
