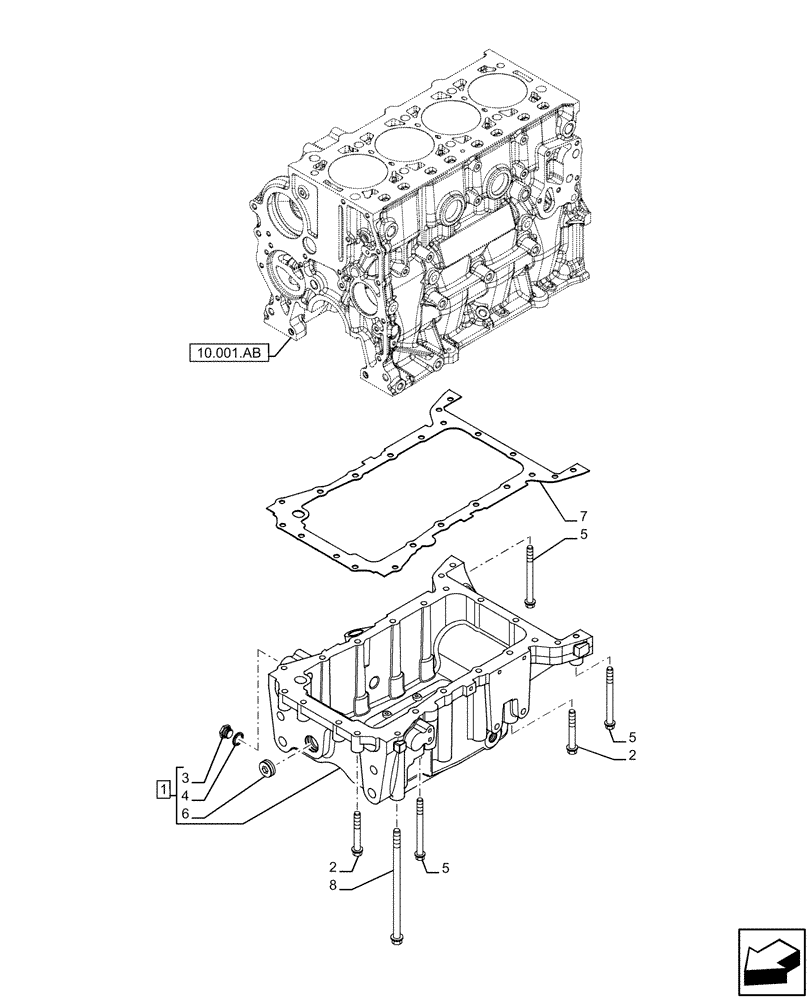

Запчасти Case IH F5GFL413A C008 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

5801511967

SUMP

ASSY, Incl 3, 4, 6

1шт.

2

16676534

BOLT,M10 x 55mm

M10 x 55mm

3шт.

2

16599125

BOLT,Hex, M10 x 130mm, Cl 8.8

6шт.

3

4894139

PLUG,Hex Soc, M22 x 1.5

Oil Sump

2шт.

4

17282280

GASKET

Oil Sump

2шт.

5

16676934

SCREW,M10 x 1.5 x 80mm

2шт.

5

16677235

BOLT,M10 x 110mm

4шт.

6

16995111

PLUG,M35 x 1.5

Oil Sump, M35 x 1.5mm

1шт.

7

504164360

GASKET

Oil Sump

1шт.

8

16599434

BOLT,Hex, M10 x 180mm, Cl 10.9

1шт.
