Запчасти Case IH F5GFL413A C005 (10.102.AK) - ENGINE, BLOCK, COVER (10) - ENGINE

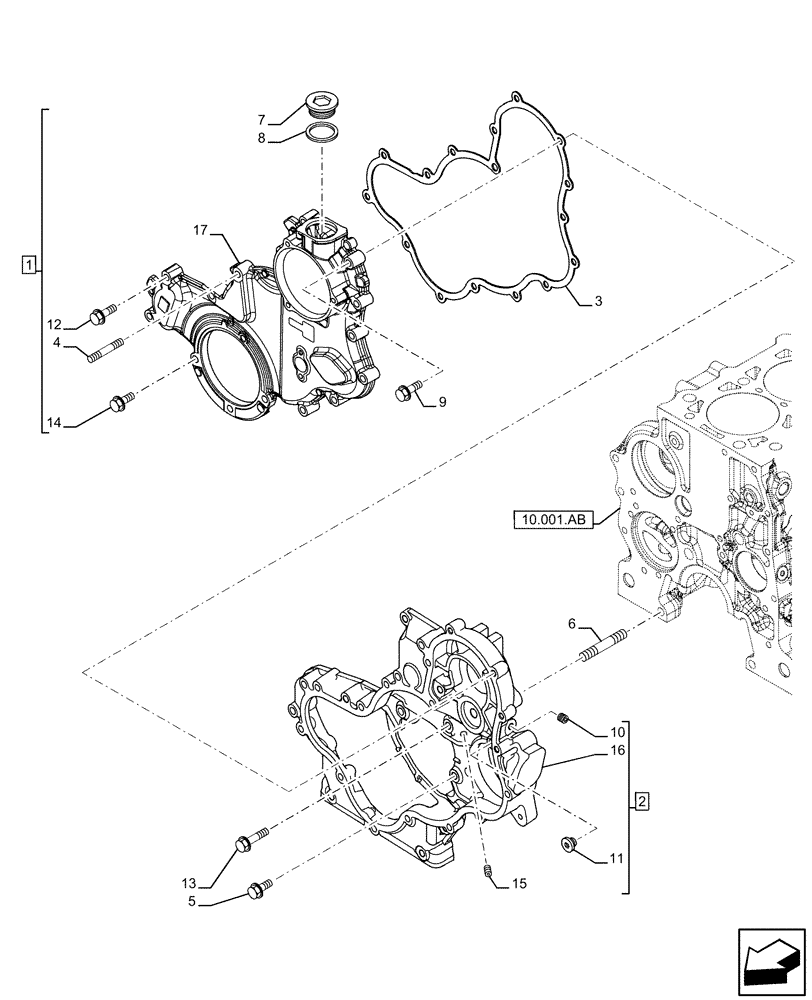

Схема запчастей Case IH F5GFL413A C005 - (10.102.AK) - ENGINE, BLOCK, COVER (10) - ENGINE
10.001.ab
6
7
17
16
9
11
14
10
12
4
5
13
8
2
3
1
15

Артикул

Название

Примечание

Количество

1

5801706000

COVER

Front, Crankcase, ASSY, Incl 4, 7, 8, 12, 14, 17

1шт.

2

5801624928

HOUSING

Rear, Crankcase, ASSY, Incl 10, 11, 15, 16

1шт.

3

504379050

GASKET

Crankcase

1шт.

4

16727724

M6 x 1mm

STUD

3шт.

5

4798844

SCREW

3шт.

6

16730924

STUD

3шт.

7

16993811

Crankcase

PLUG

1шт.

8

99469381

GASKET

Crankcase

1шт.

9

16586624

SCREW,M8 x 35mm

15шт.

10

504051236

PLUG,Threaded, 1/8"

Crankcase

1шт.

11

16882515

PLUG

Crankcase

1шт.

12

16586825

BOLT,Hex, M8 x 1.25 x 45mm

7шт.

13

16586725

BOLT,Hex, M8 x 1.25 x 40mm

1шт.

14

16673735

BOLT,Hex, M8 x 1.25 x 25mm

4шт.

15

16996011

PLUG

Crankcase

1шт.

16

NSS

NOT SOLD SEPARAT

Crankcase Rear Cover, Incl in 2

1шт.

17

NSS

NOT SOLD SEPARAT

Crankcase Front Cover, Incl in 1

1шт.

Выбрано товаров: 17
