(10.400.AE) - PIPING - ENGINE COOLING SYSTEM

Запчасти Case IH F5GFL413A B013 (10.400.AE) - PIPING - ENGINE COOLING SYSTEM (10) - ENGINE

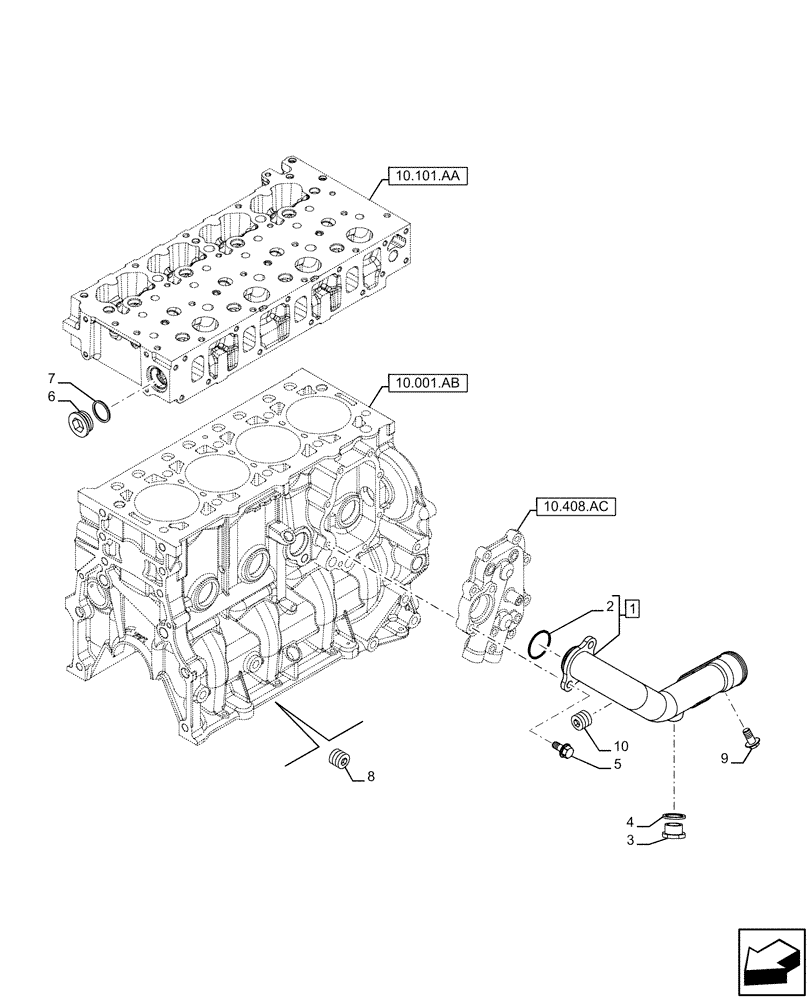

Схема запчастей Case IH F5GFL413A B013 - (10.400.AE) - PIPING - ENGINE COOLING SYSTEM (10) - ENGINE
10.001.ab
2
6
1
3
7
8
5
4
9
10
10.101.aa
10.408.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5801569335

PIPE

ASSY, Incl 2

1шт.

2

17289081

O-RING,31.34mm ID x 3.53mm

Incl in 2

1шт.

3

16992511

PLUG

Coolant heating lines

1шт.

4

16508360

GASKET

Coolant heating lines

1шт.

5

16600224

SCREW,Hex, M8 x 1.25 x 18mm

2шт.

6

16993711

PLUG,M35 x 1.5

Coolant heating lines

1шт.

7

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

Coolant heating lines

1шт.

8

5801583172

PLUG

Coolant heating lines

1шт.

9

16597925

BOLT,Hex, M8 x 14mm

1шт.

10

4892762

PLUG,1/4 - 18" OD x 0.46" L

Coolant heating lines

1шт.
