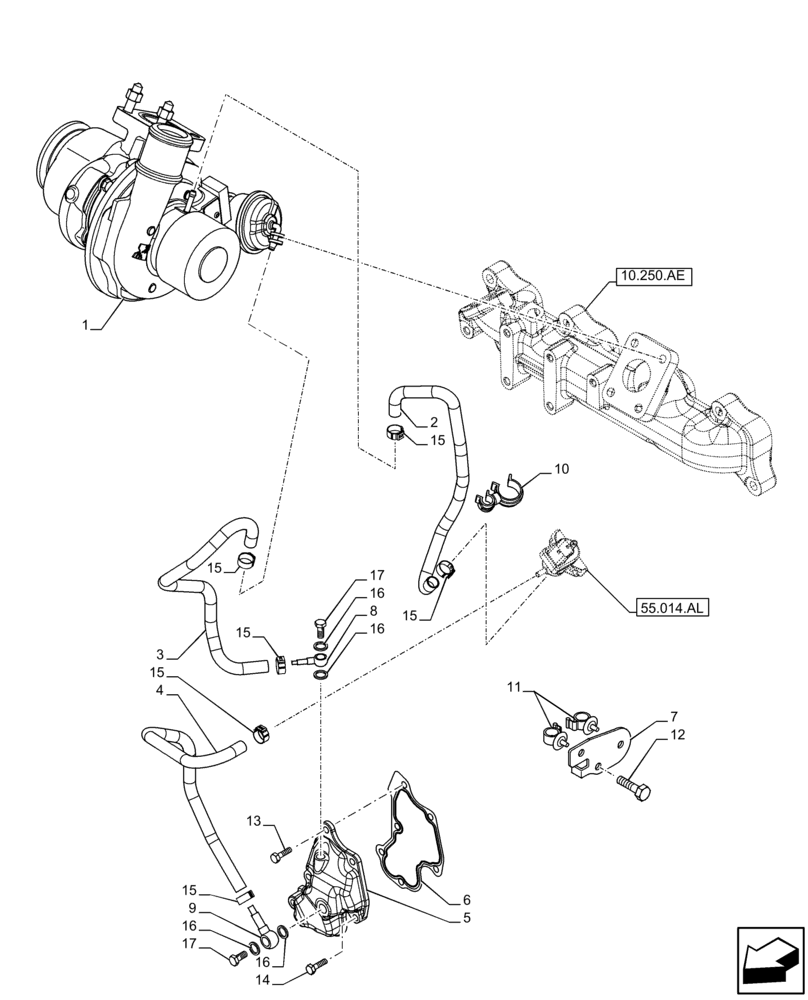

Запчасти Case IH F5GFL413A B006 (10.250.AC) - TURBOCHARGER (10) - ENGINE

1

5801861492

TURBOCHARGER

1шт.

2

5801404365

TUBE

1шт.

3

5801509001

TUBE

1шт.

4

5801509002

TUBE

1шт.

5

5801679097

COVER

1шт.

6

5801509267

GASKET

1шт.

7

5801509009

BRACKET, SUPPORTING

D=8,5 mm

1шт.

8

5801673344

COUPLING

M8 x 1,25 x 18 mm

1шт.

9

5801673343

SEAL

ASSY; Incl 10 - 12; 16; 18

1шт.

10

5801425138

CLAMP

1шт.

11

504000060

COLLAR

D=8 x 14 Sp=2,3 mm

2шт.

12

16600224

SCREW,Hex, M8 x 1.25 x 18mm

M8 x 1,25

1шт.

13

16978124

BOLT,Hex, M6 x 14mm

M6 x 14 mm

3шт.

14

16586025

SCREW,Hex, M6 x 30mm

M6 x 30 mm

3шт.

15

18225770

COLLAR CLAMP

6шт.

16

98474303

WASHER,8mm ID x 14mm OD x 2.3mm Thk

4шт.

17

4864078

BANJO BOLT,M8 x 1.25

2шт.
