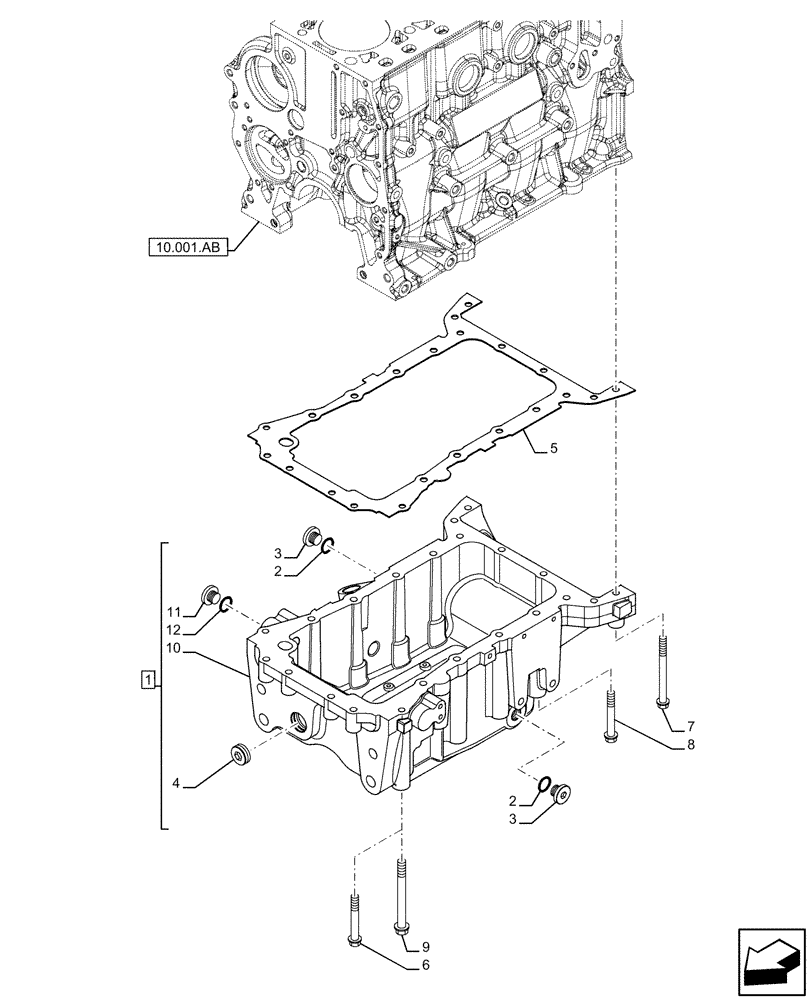

Запчасти Case IH F5DFL413J A011 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

504248412

SUMP

ASSY, Incl 1 - 4, 10 - 12

1шт.

2

17282280

GASKET

2.62 x 23.47mm Dia

2шт.

3

4894139

PLUG,Hex Soc, M22 x 1.5

2шт.

4

16995111

PLUG,M35 x 1.5

M35 x 1.5

1шт.

5

504164360

GASKET

1шт.

6

16676534

BOLT,M10 x 55mm

M10 x 55 mm

10шт.

7

16677235

BOLT,M10 x 110mm

M10 x 110 mm

4шт.

8

16676934

SCREW,M10 x 1.5 x 80mm

4шт.

9

16599434

BOLT,Hex, M10 x 180mm, Cl 10.9

4шт.

10

NSS

NOT SOLD SEPARAT

Oil Pan, Incl in 1

1шт.

11

16992415

PLUG,M16 x 1.5

1шт.

12

99489019

SEALING WASHER

1шт.
