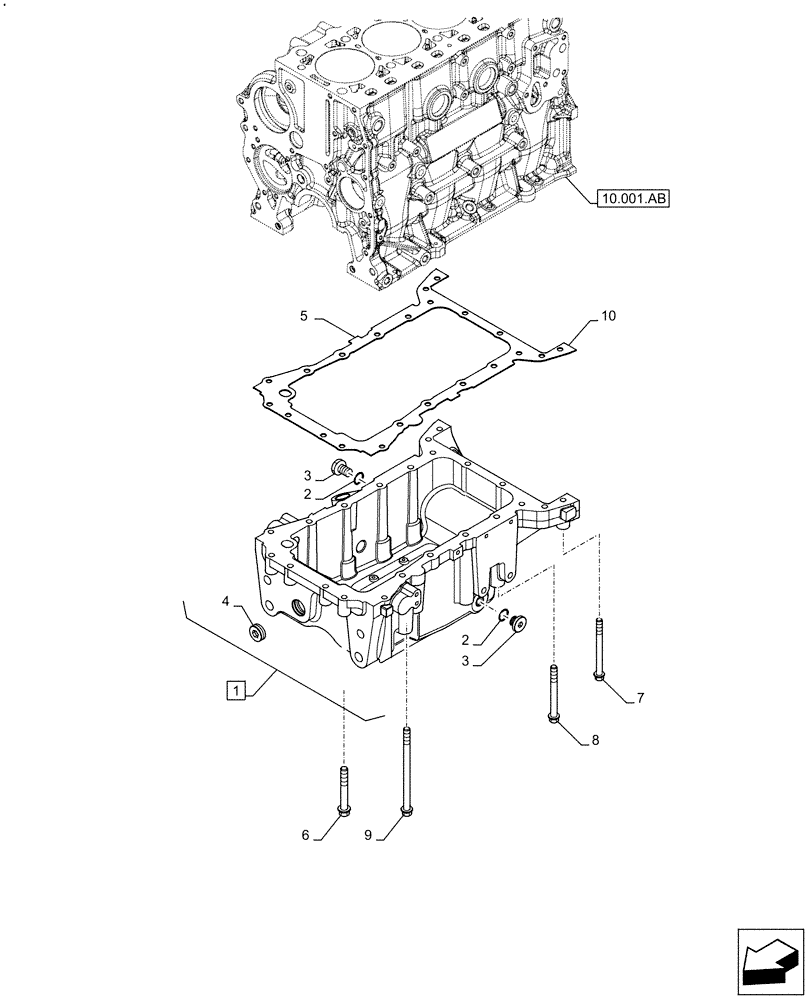

Запчасти Case IH F5DFL413H A017 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

5801519188

ENGINE OIL PAN

ASSY; Incl 1 - 4; 10

1шт.

2

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

D=2,62 x 23,47 mm

2шт.

3

4894139

PLUG,Hex Soc, M22 x 1.5

M22 x 1,5

2шт.

4

16995111

PLUG,M35 x 1.5

M35 x 1,5

1шт.

5

504164360

GASKET

1шт.

6

16676534

BOLT,M10 x 55mm

M10 x 55 mm

10шт.

7

16677235

BOLT,M10 x 110mm

M10 x 110 mm

4шт.

8

16598934

SCREW,Hex, M10 x 110mm, Cl 10.9

4шт.

9

16599434

BOLT,Hex, M10 x 180mm, Cl 10.9

4шт.

10

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.
