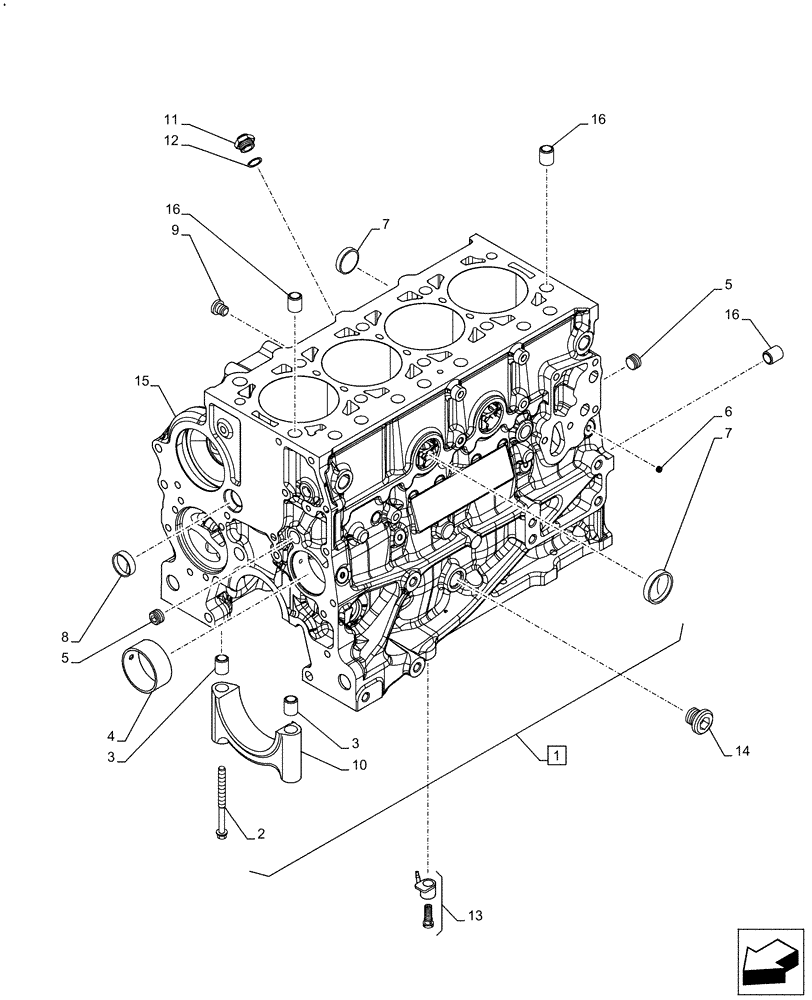

Запчасти Case IH F5DFL413H A017 (10.001.AB) - CRANKCASE (10) - ENGINE

1

5801501613

CYLINDER BLOCK,4 Cylinders

ASSY; Incl 2 - 10; 15

1шт.

2

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

M12 x 120 mm

10шт.

3

7300019

DOWEL,0.75mm Thk

Sp= 0,75 mm

2шт.

4

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

5

504051238

PLUG,Threaded, 3/8" Dia

D= 3/8

3шт.

6

504138060

PLUG

4шт.

7

14329901

PLUG,M40, Tapered

D=40 mm

5шт.

8

16990970

PLUG,Lock, 30mm Dia

D=30 mm

1шт.

9

504016052

PLUG,M14 x 1.5

M=14 x 1,5

1шт.

10

NSS

NOT SOLD SEPARAT

Crankcase; Incl. in 1

1шт.

11

5801720267

UNION

1шт.

12

504077652

SEALING WASHER,13mm ID x 19mm OD

D=13 - 19

1шт.

13

5801363466

LUBE OIL NOZZLE

Assy

4шт.

14

17917015

PLUG

M22 x 1,5

1шт.

15

NSS

NOT SOLD SEPARAT

Crankcase; Incl. in 1

1шт.

16

7300019

DOWEL,0.75mm Thk

Sp= 0,75 mm

12шт.
