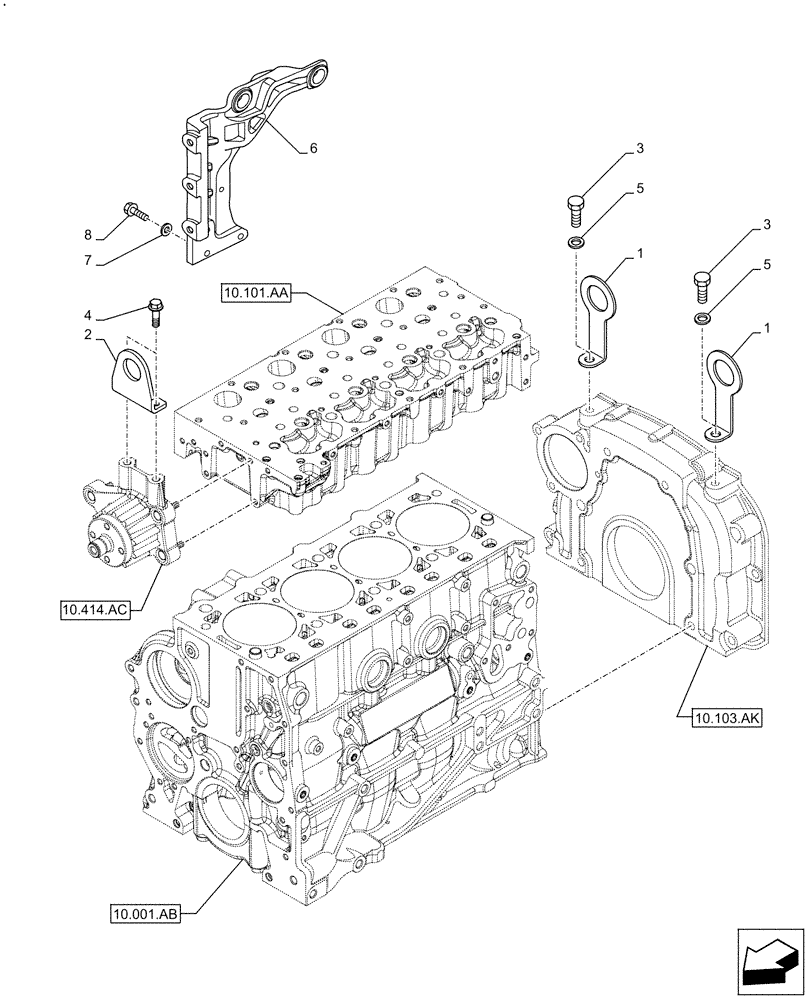

Запчасти Case IH F5DFL413H A015 (10.001.AK) - ENGINE, SUPPORT (10) - ENGINE

1

504239237

HOOK

2шт.

2

2853667

BRACKET

1шт.

3

4894641

CAPTIVE WASHER SCREW,M12 X 1.25 X 31mm

M12 x 1,25

2шт.

4

18139424

SCREW,Hex, M10 x 20mm

M10 x 20 mm

2шт.

5

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

D=12 x 24 mm

2шт.

6

5801539587

FASTENER

1шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

D=8 x 16 Sp=1,4 mm

3шт.

8

16043833

M8 x 1,25 x 30 mm

BOLT

3шт.
