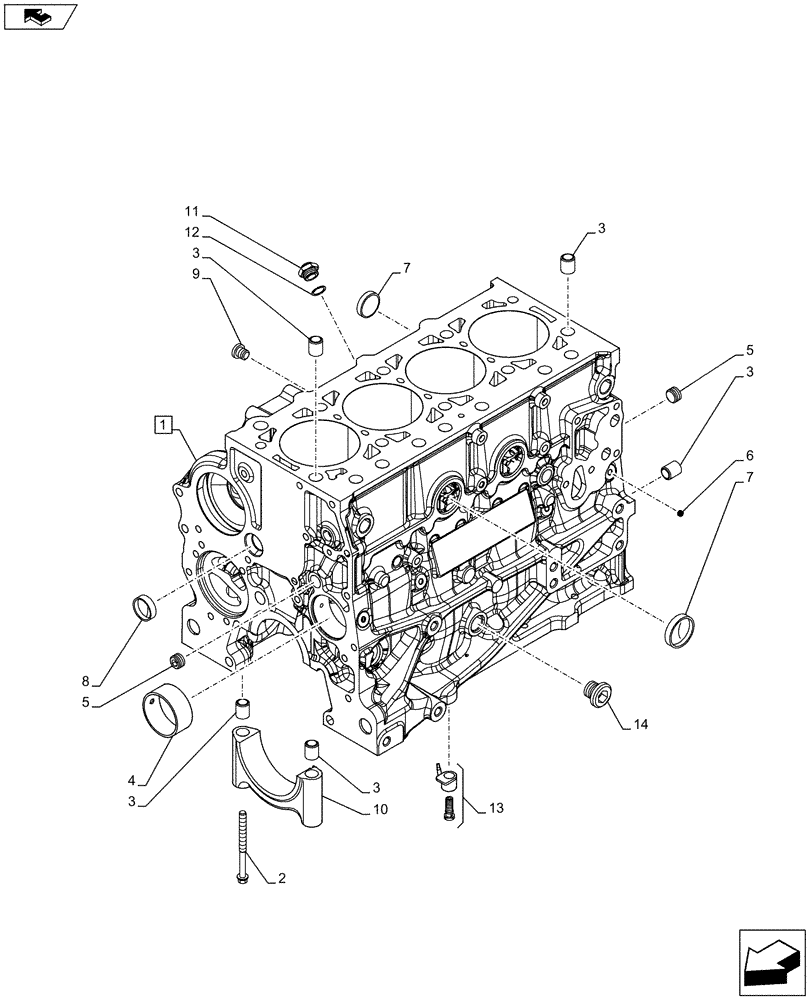

Запчасти Case IH F5DFL413H A009 (10.001.AB) - CRANKCASE (10) - ENGINE

1

5801501613

CYLINDER BLOCK,4 Cylinders

ASSY, Incl 2-10

1шт.

2

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

Flg Hd, M12 x 1.5 x 120

10шт.

3

7300019

DOWEL,0.75mm Thk

14шт.

4

4805040

SPARE PART

1шт.

5

504051238

PLUG,Threaded, 3/8" Dia

3шт.

6

504138060

PLUG

4шт.

7

14329901

PLUG,M40, Tapered

Tapered, M40

5шт.

8

16990970

PLUG,Lock, 30mm Dia

1шт.

9

504016052

PLUG,M14 x 1.5

1шт.

10

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

11

504356829

PIPE FITTING,M14 x 1.5

1шт.

12

504077652

SEALING WASHER,13mm ID x 19mm OD

1шт.

13

5801363466

LUBE OIL NOZZLE

4шт.

14

17917015

PLUG

1шт.
