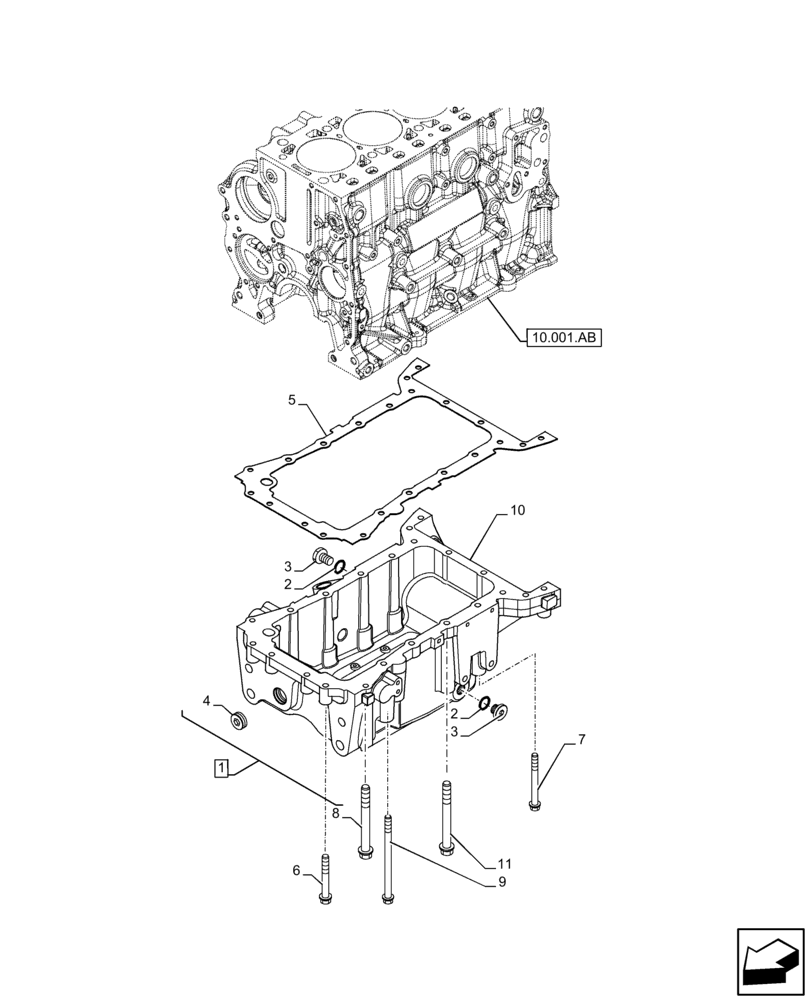

Запчасти Case IH F5DFL413H A009 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

5801511967

SUMP

ASSY, Incl 1 - 4, 10

1шт.

2

17282280

GASKET

M2,62 x 23,47mm

2шт.

3

4894139

PLUG,Hex Soc, M22 x 1.5

2шт.

4

16995111

PLUG,M35 x 1.5

M35 x 1,5mm

1шт.

5

504164360

GASKET

Oil Sump Spacer

1шт.

6

16676534

BOLT,M10 x 55mm

M10 x 55mm

8шт.

7

16677235

BOLT,M10 x 110mm

M10 x 110mm

4шт.

8

16676934

SCREW,M10 x 1.5 x 80mm

2шт.

9

16599434

BOLT,Hex, M10 x 180mm, Cl 10.9

2шт.

10

NSS

NOT SOLD SEPARAT

Oil Sump, Incl in 1

1шт.

11

16599125

BOLT,Hex, M10 x 130mm, Cl 8.8

6шт.
