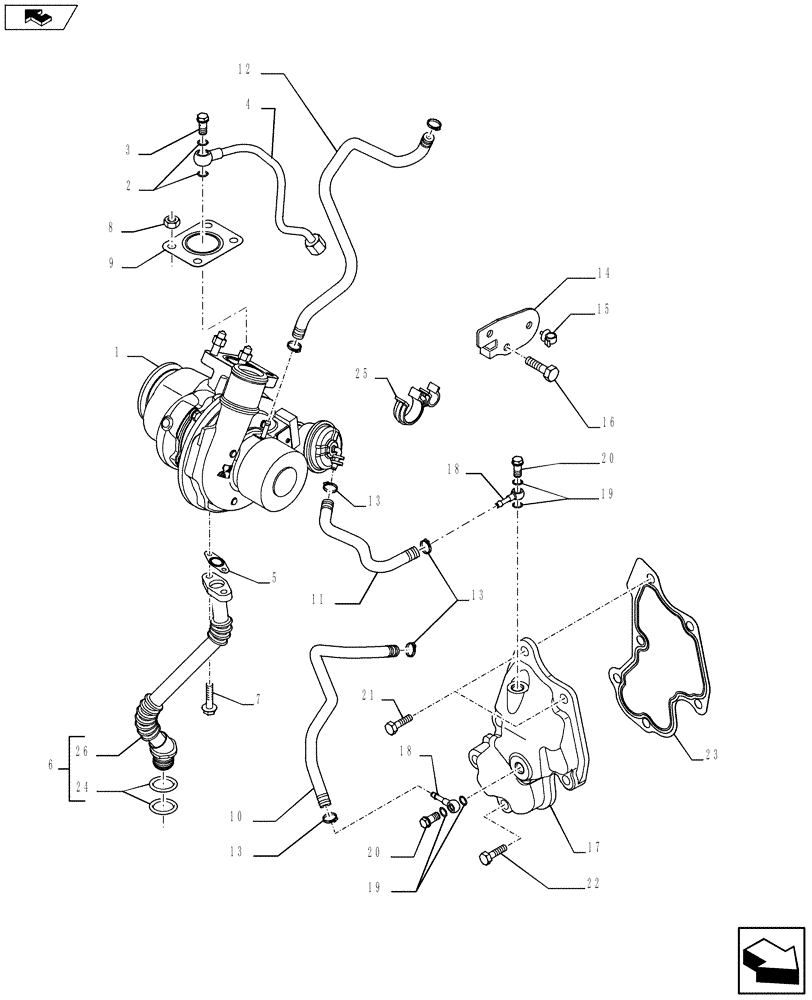

Запчасти Case IH F5DFL413A A001 (10.250.01) - TURBOCHARGING (5801511064) (10) - ENGINE

1

5801520045

TURBOCHARGER

1шт.

5801520045R

REMAN-TURBOCHARGER

F5DFL413A*A001 ENGINE 5801390419 - 84226403, FARMALL 105C, FARMALL 85C, FARMALL 95C TIER 4 (12/12-), T4.105, T4.85, T4.95 TIER 4 KN8M4R (12/12-), T5.105 TIER 4 JN1P4C, T5.115 TIER 4 JN1P4C, JN1P4U all (7/12-), T5.95 TIER 4 JN9P4C, JN9P4U (1/12-)

1шт.

5801520045C

CORE-TURBOCHARGER

Return Number

1шт.

2

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

2шт.

3

16511214

HYD CONNECTOR,M12 x 1.5 x 30mm

1шт.

4

5801491614

PIPE

1шт.

5

504377006

GASKET

1шт.

6

5801509000

PIPE

ASSY

1шт.

7

18137825

BOLT,Hex, M6 x 16mm

2шт.

8

500322677

NUT,M8

FLANGE NUT

2шт.

9

4899343

GASKET,0.45mm Thk

1шт.

10

5801509002

TUBE

1шт.

11

5801509001

TUBE

1шт.

12

5801404365

TUBE

1шт.

13

18199070

MOUNTING CLIP

6шт.

14

5801509009

BRACKET, SUPPORTING

ASSY

1шт.

15

504000060

COLLAR

2шт.

16

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

1шт.

17

5801509090

COVER

1шт.

18

5801509102

FITTING

2шт.

19

98474303

WASHER,8mm ID x 14mm OD x 2.3mm Thk

4шт.

20

4864078

BANJO BOLT,M8 x 1.25

2шт.

21

16978124

BOLT,Hex, M6 x 14mm

2шт.

22

2854083

BOLT,Flng, M6 x 1 x 30mm

4шт.

23

5801509267

GASKET

1шт.

24

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

25

5801425138

CLAMP

1шт.

26

NSS

NOT SOLD SEPARAT

1шт.
