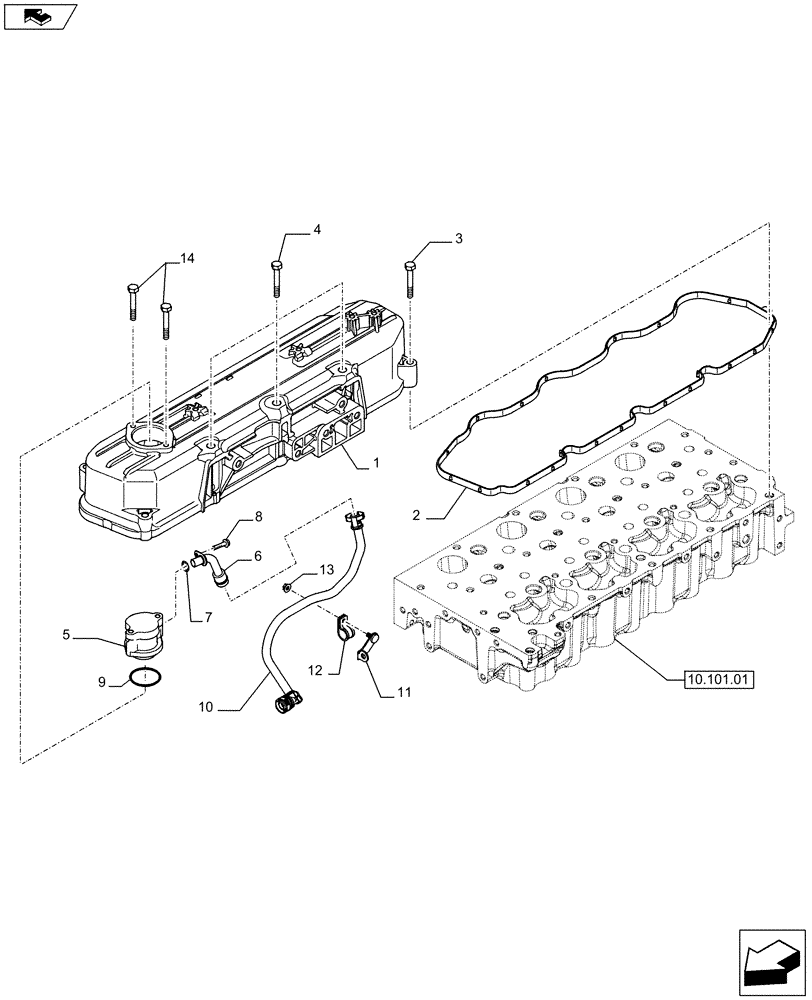

Запчасти Case IH F5DFL413A A001 (10.101.02) - CYLINDER HEAD COVERS (504389274) (10) - ENGINE

1

504389275

VALVE COVER

1шт.

2

5801446795

GASKET

1шт.

3

16591725

SCREW,Hex, M6 x 40mm

7шт.

4

16598325

BOLT,Hex, M8 x 100mm

3шт.

5

5801514600

FITTING

1шт.

6

5801522165

PIPE FITTING

1шт.

7

17278090

O-RING,10.82mm ID x 1.78mm

1шт.

8

16585125

BOLT,Hex, M5 x 12mm

1шт.

9

17283081

O-RING

1шт.

10

5801514620

PIPE FITTING

1шт.

11

5801514622

BRACKET

1шт.

12

10441390

COLLAR,12mm, Coat, 7mm Bolt Hole, P Type

1шт.

13

2852197

FLANGE NUT,M6 x 1

1шт.

14

2854083

BOLT,Flng, M6 x 1 x 30mm

2шт.
