(3022.007) - HOUSING OIL

Запчасти Case IH F5CE9484B A002 (3022.007) - HOUSING OIL

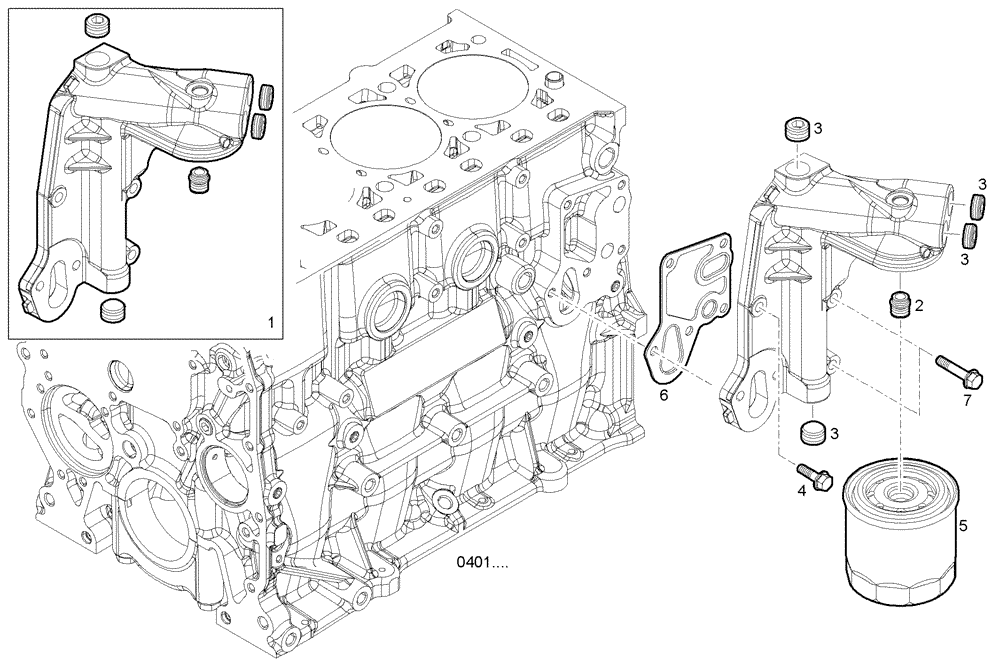

Схема запчастей Case IH F5CE9484B A002 - (3022.007) - HOUSING OIL
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504271928

FILTER HEAD

OIL FILTER SUPPORT

1шт.

2

504289002

UNION

THREADED UNION

1шт.

3

504113860

PLUG,Threaded, 1/2"

THREADED PLUG, DIAM=1/2"

4шт.

4

16586524

FLANGE BOLT,Hex Flat Hd, M8 x 1.25 x 30mm, Cl 8.8

HEXAGON BOLT, M8X30 MM

1шт.

5

504182851

OIL FILTER ELEMENT

ENGINE OIL FILTER

1шт.

6

504235816

GASKET

FLAT ENGINE GASKET

1шт.

7

16592225

BOLT,M8 x 55mm

HEXAGON BOLT, M8X55 MM

2шт.
