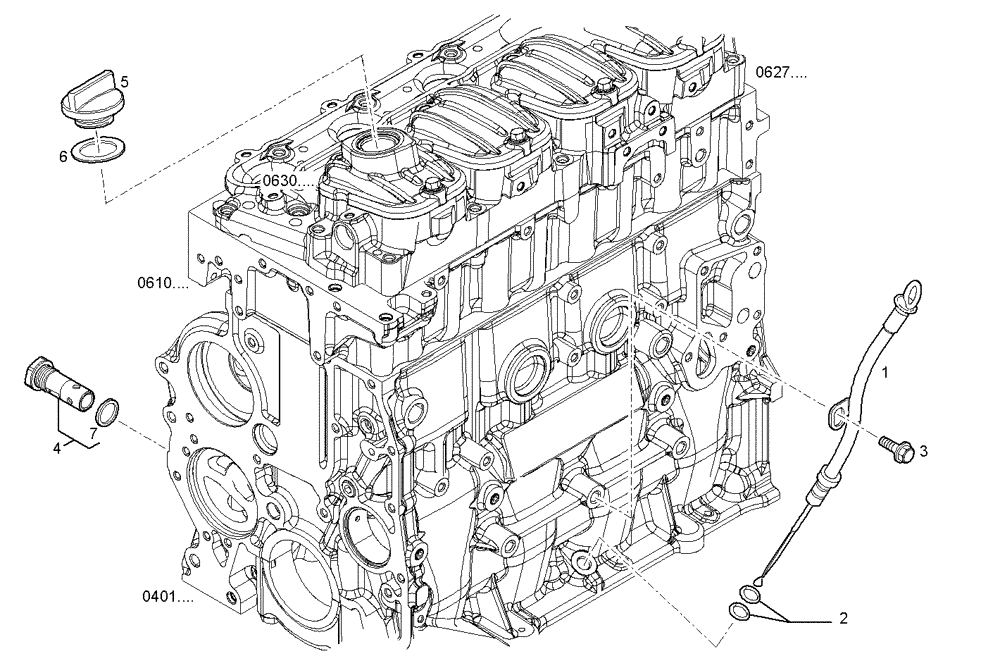

Запчасти Case IH F5CE9454G A001 (2700.036) - OIL DIPSTICK & FILLER PIPE (10) - ENGINE

1

504226579

DIPSTICK

OIL DIPSTICK

1шт.

2

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

O-RING, 1,78x9,25

2шт.

3

16588225

BOLT,Hex, M12 x 1.75 x 40mm

HEXAGON BOLT, M12X40 MM

1шт.

4

504357733

VALVE

VALVE

1шт.

5

4895202

FILLER CAP

OIL FILLER PLUG

1шт.

6

4895296

SEALING RING,30mm ID x 48mm OD x 3mm Thk

SEAL GASKET

1шт.

7

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

SEAL GASKET, dia=22X30 MM SP=1,5 MM

1шт.
