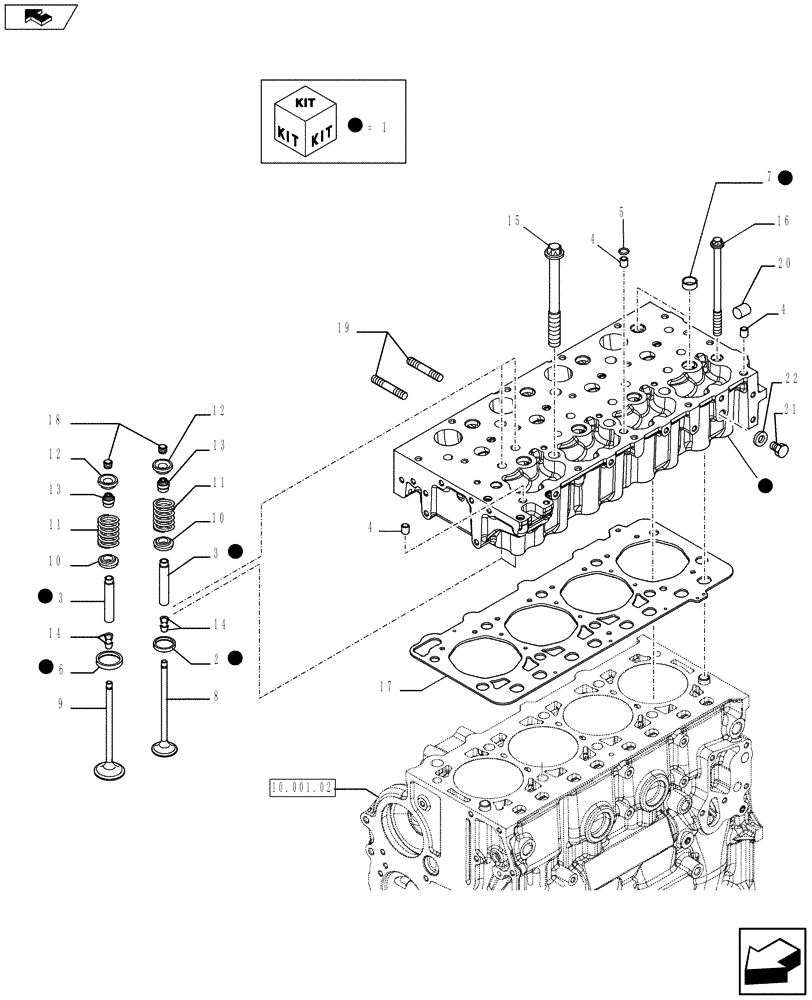

Запчасти Case IH F5CE5454G A001 (10.101.01) - CYLINDER HEAD & RELATED PARTS (504385845) (10) - ENGINE

1

504385846

CYLINDER HEAD,4 Cylinder

- ASSY Include Ref 2,3,6,7

1шт.

1

47573576R

REMAN-CYLINDER HEAD

L223, SR200, Both SKID STEER LOADER, C227, TR270, Both COMPACT TRACK LOADER, All ASSY (4/11-)

1шт.

1

47573576C

CORE-CYLINDER HEAD

Return Number

1шт.

2

504162949

VALVE SEAT

4шт.

3

4749397

VALVE GUIDE,Std

+0,05 mm

8шт.

3

4749398

VALVE GUIDE,+0.10

+0,1 mm

8шт.

3

4749399

VALVE GUIDE,+0.2

+0,25 mm

8шт.

4

99435557

DOWEL,8.50mm Dia

D. 8,5 mm

3шт.

5

17281481

O-RING,10.7mm ID x 2.6mm Width

D. 10,7 mm SP=2,6 mm

1шт.

6

504254094

VALVE SEAT

4шт.

7

16988301

PLUG,Lock, 20mm Dia

D. 20 mm

8шт.

8

504162958

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

9

504162959

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

10

504178119

RETAINER CUP

8шт.

11

4812347

SPRING

8шт.

12

4780558

CUP

8шт.

13

40101574

GASKET

8шт.

14

14196670

ROCKER ARM COTTER

D. 7,85 mm

16шт.

15

504081521

BOLT,M15 x 1.5 x 193mm

M15X1,5X193 mm

6шт.

16

504081533

BOLT,M12 x 1.5 x 165mm

M12X1,5X165 mm

4шт.

17

504190831

CYLINDER HEAD GASKET

SP 0,8

1шт.

18

4838680

CAP

8шт.

19

500380521

STUD,M5 x 12 x 45mm

M8 x 1.25 x 45

8шт.

20

16990970

PLUG,Lock, 30mm Dia

1шт.

21

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

22

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.
