(55.100.05) - CONNECTIONS CABLE FOR ENGINE INJECTION - PLUG GLOW (504385861 - 504385863)

Запчасти Case IH F5CE5454G A001 (55.100.05) - CONNECTIONS CABLE FOR ENGINE INJECTION - PLUG GLOW (504385861 - 504385863) (55) - ELECTRICAL SYSTEMS

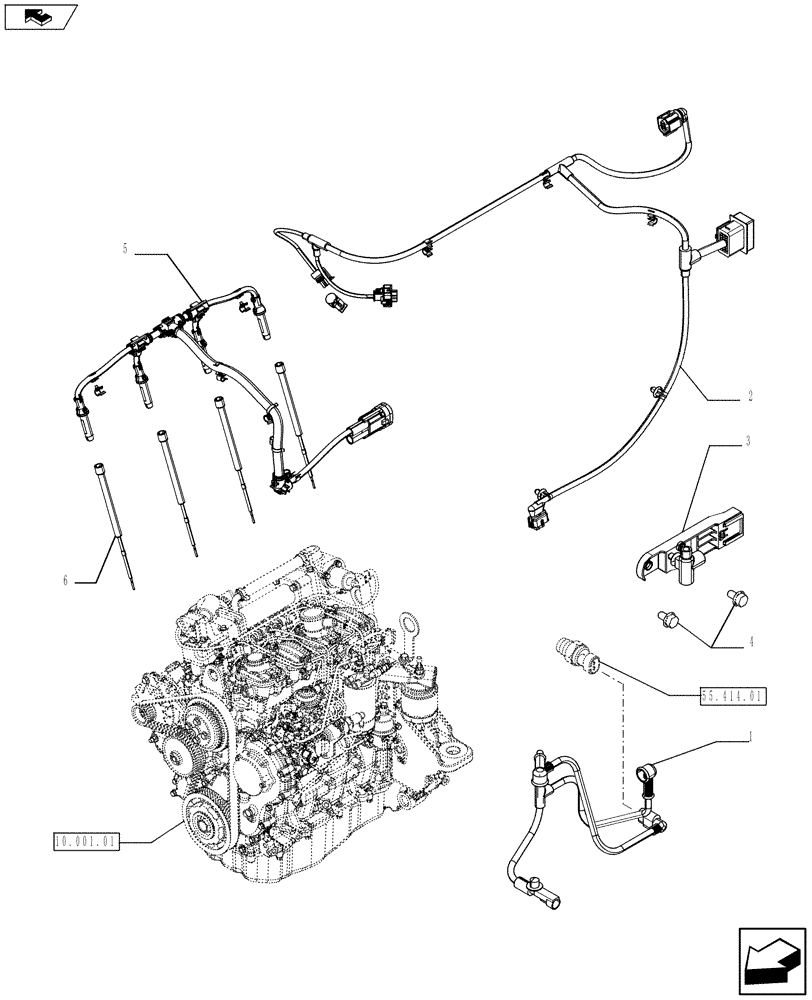

Схема запчастей Case IH F5CE5454G A001 - (55.100.05) - CONNECTIONS CABLE FOR ENGINE INJECTION - PLUG GLOW (504385861 - 504385863) (55) - ELECTRICAL SYSTEMS
55.414.01
1
4
10.001.01
5
6
3
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504264648

WIRE HARNESS

1шт.

2

5801366188

HARNESS

1шт.

3

504284210

WIRE CLAMP

1шт.

4

2852323

SCREW,M8 x 1.25 x 14mm

M8X14 mm

2шт.

5

504385864

HARNESS

1шт.

6

504385468

GLOW PLUG

4шт.
