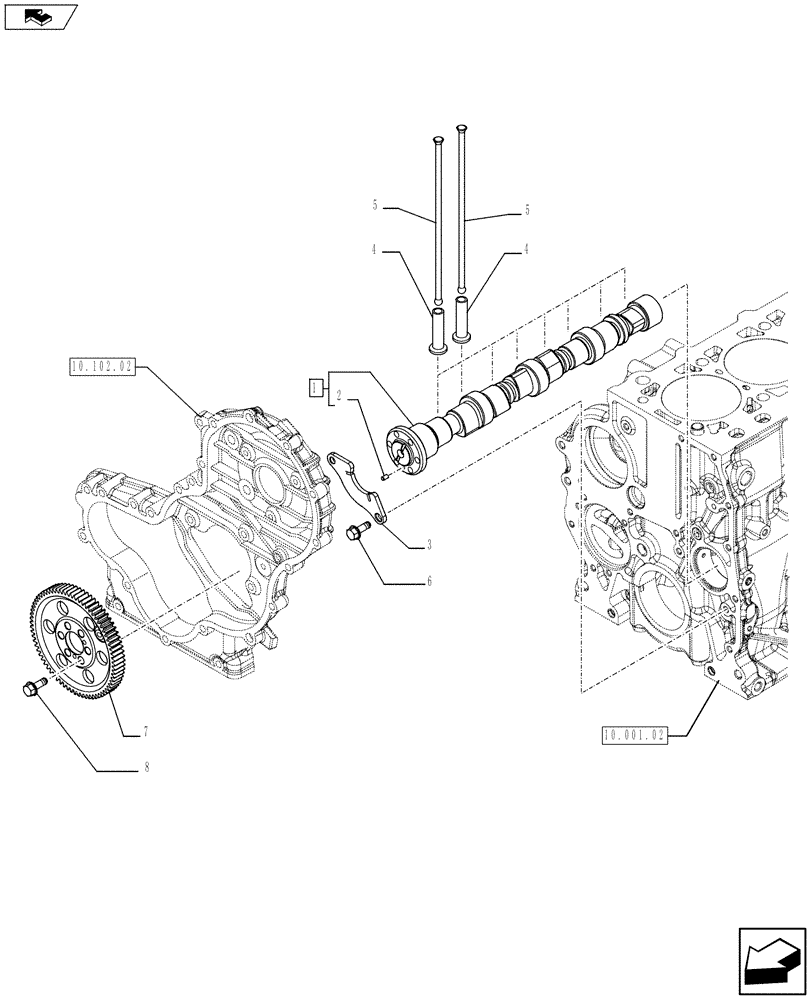

Запчасти Case IH F5CE5454G A001 (10.106.01) - CAMSHAFT - TIMING CONTROL (504228067) (10) - ENGINE

1

504272265

CAMSHAFT

- ASSY

1шт.

1

504272265R

REMAN-CAMSHAFT

C227, TR270, Both COMPACT TRACK LOADER, L223, SR200, Both SKID STEER LOADER, All ASSY (4/11-)

1шт.

1

504272265C

Return Number

1шт.

2

10839510

DOWEL,M6 x 9

1шт.

3

4897457

SUPPORT

1шт.

4

98471524

TAPPET

+0,0

8шт.

5

504163240

PUSH ROD

8шт.

6

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

7

504240396

GEAR

1шт.

8

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

6шт.
