(10.103.03) - BELT PULLEY DRIVE & COVER (504388092)

Запчасти Case IH F5CE5454C A003 (10.103.03) - BELT PULLEY DRIVE & COVER (504388092) (10) - ENGINE

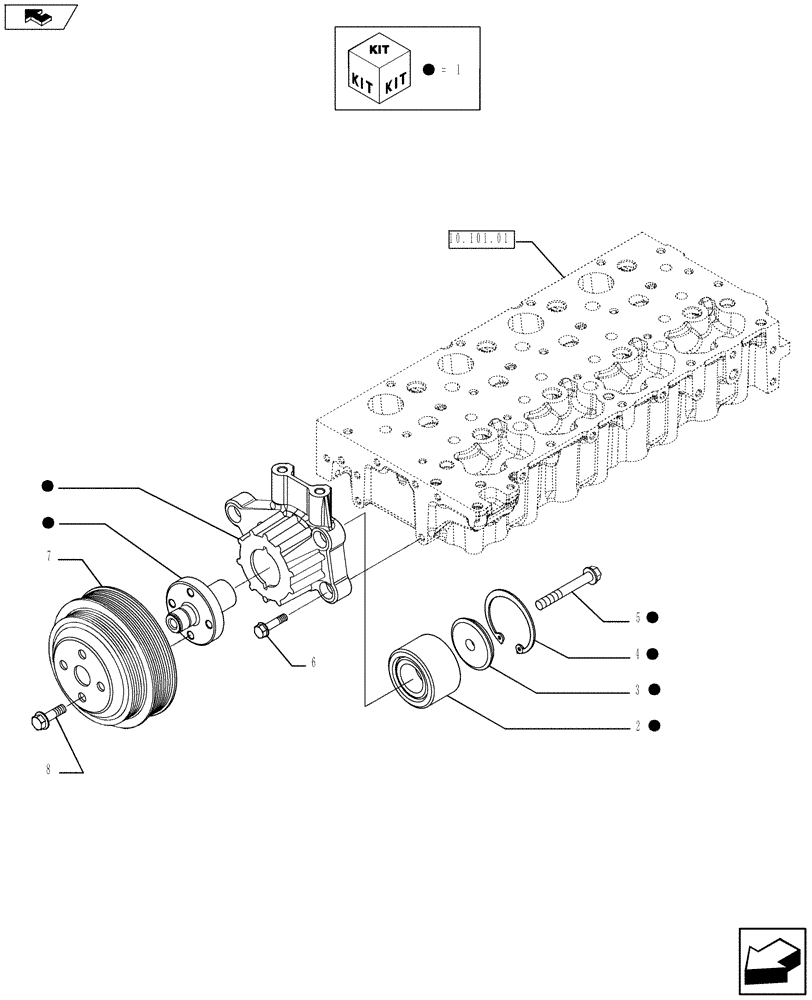

Схема запчастей Case IH F5CE5454C A003 - (10.103.03) - BELT PULLEY DRIVE & COVER (504388092) (10) - ENGINE
1
5
1
home
8
3
1
1
4
6
10.101.01
7
1
2
1
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504255374

FAN HOUSING

- ASSY

1шт.

2

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

3

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.

4

500395467

1шт.

5

2852172

BOLT,Flng, M10 x 1.5 x 70mm

M10 x 70

1шт.

6

16673735

BOLT,Hex, M8 x 1.25 x 25mm

M8X30 mm

5шт.

7

504388091

PULLEY,180mm OD x 64mm W

1шт.

8

18139424

SCREW,Hex, M10 x 20mm

M10 x 20

4шт.
