(55.014.AL) - TURBOCHARGER, PRESSURE CONTROL VALVE

Запчасти Case IH F5BFL413E C001 (55.014.AL) - TURBOCHARGER, PRESSURE CONTROL VALVE (55) - ELECTRICAL SYSTEMS

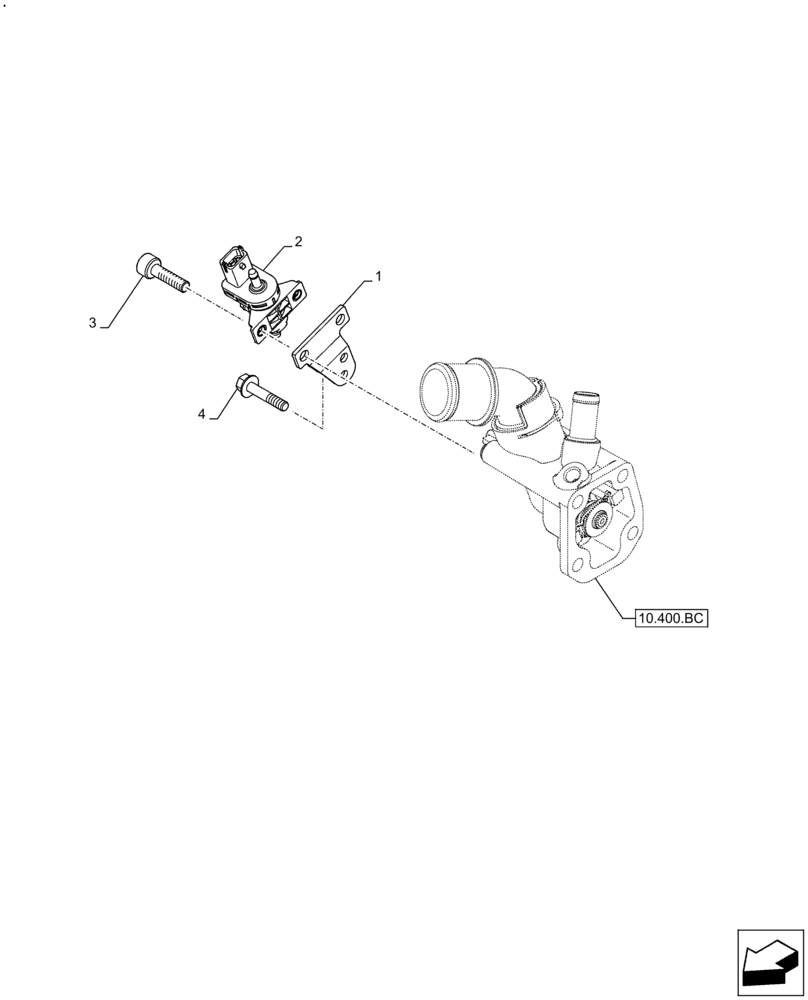

Схема запчастей Case IH F5BFL413E C001 - (55.014.AL) - TURBOCHARGER, PRESSURE CONTROL VALVE (55) - ELECTRICAL SYSTEMS
2
10.400.bc
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5801516901

BRACKET

Turbocharger, Pressure Control Valve

1шт.

2

504385061

VALVE, PRESSURE CONT

Turbocharger

1шт.

3

16689121

SCREW,Skt Hd, M6 x 16mm

2шт.

4

18137825

BOLT,Hex, M6 x 16mm

1шт.

Выбрано товаров: 4
