Запчасти Case IH F5BFL413E C001 (10.501.AB) - EXHAUST SYSTEM, EGR, HEAT EXCHANGER (10) - ENGINE

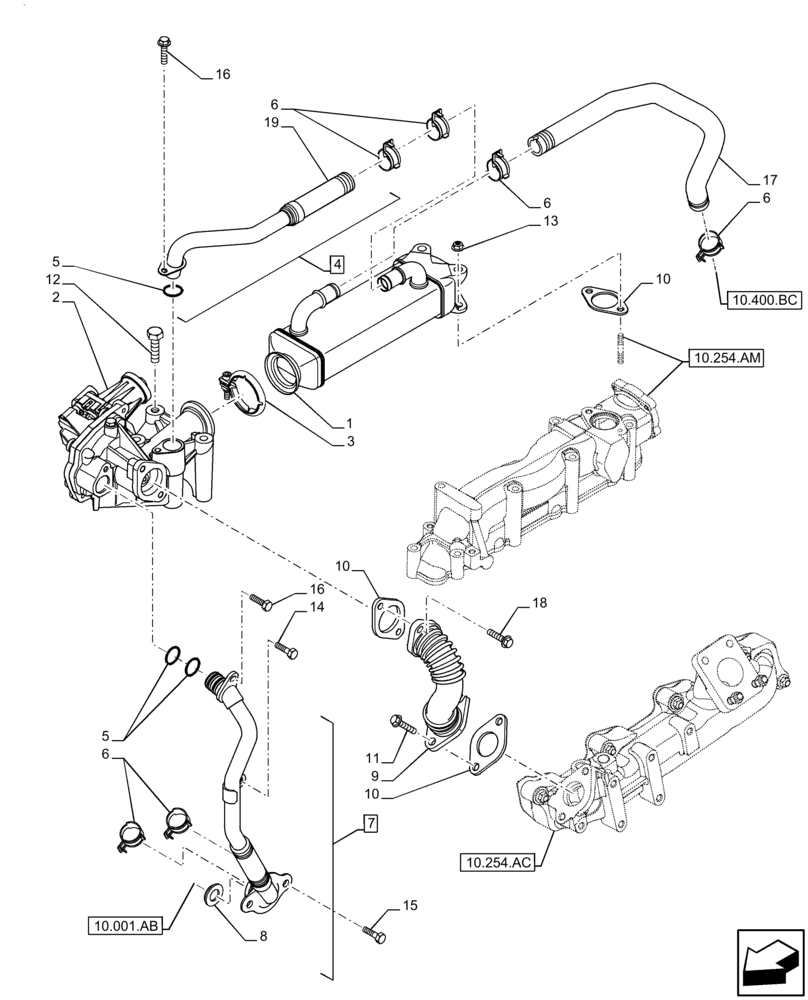

Схема запчастей Case IH F5BFL413E C001 - (10.501.AB) - EXHAUST SYSTEM, EGR, HEAT EXCHANGER (10) - ENGINE
10
19
1
14
10.400.bc
2
9
4
10
10
17
6
6
11
3
10.001.ab
13
16
16
5
6
12
10.254.ac
7
15
8
10.254.am
5
6
18

Артикул

Название

Примечание

Количество

1

5801495578

HEAT EXCHANGER

Exhaust System, EGR

1шт.

2

5801717197

CONTROL VALVE

Exhaust System, EGR, Heat Exchanger

1шт.

3

504385412

MOUNTING CLIP

1шт.

4

5801712643

PIPE

ASSY, Exhaust System, EGR, Heat Exchanger, Incl 5, 19

1шт.

5

17281881

O-RING,0.674" ID x 0.88" OD x 0.103"

3шт.

6

5801602848

SCREW

2шт.

7

5801702194

PIPE

ASSY, Exhaust System, EGR, Heat Exchanger, Incl 5, 8, 16

1шт.

8

17289181

O-RING

1шт.

9

5801712694

EXHAUST SYSTEM PIPE

EGR, Heat Exchanger

1шт.

10

504341194

GASKET

Exhaust System, EGR, Heat Exchanger

3шт.

11

5801602826

SCREW

2шт.

12

16598224

SCREW,Hex, M8 x 90mm

3шт.

13

17044725

NUT,Hex, M8

2шт.

14

16597925

BOLT,Hex, M8 x 14mm

1шт.

15

4798845

BOLT,M8 x 1.25 x 16.50mm

3шт.

16

18186570

COLLAR CLAMP

8шт.

17

5801623218

HOSE

Exhaust System, EGR, Heat Exchanger

1шт.

18

18137825

BOLT,Hex, M6 x 16mm

2шт.

19

NSS

NOT SOLD SEPARAT

Exhaust System, EGR, Heat Exchanger, Incl in 4

1шт.

Выбрано товаров: 19
