Запчасти Case IH F5BFL413E B002 (10.400.AE) - PIPING - ENGINE COOLING SYSTEM (10) - ENGINE

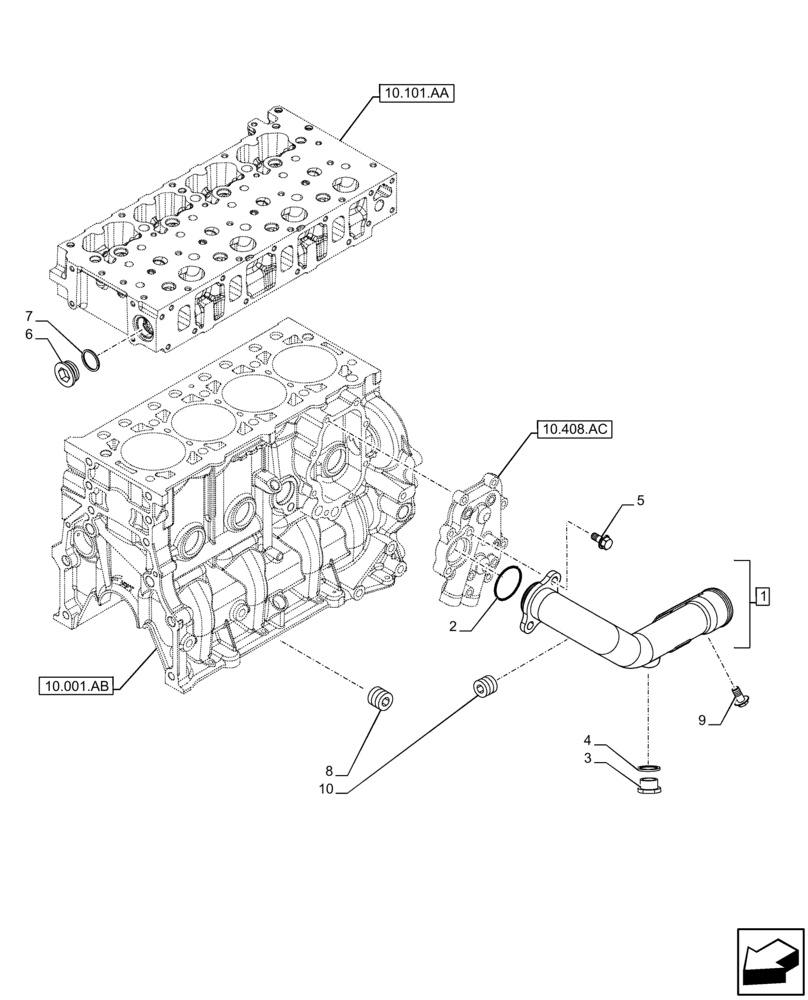

Схема запчастей Case IH F5BFL413E B002 - (10.400.AE) - PIPING - ENGINE COOLING SYSTEM (10) - ENGINE
5
2
1
7
9
4
10
3
10.101.aa
10.001.ab
6
8
10.408.ac

Артикул

Название

Примечание

Количество

1

5801768445

PIPE

Engine Cooling System, ASSY, Incl 2

1шт.

2

17289081

O-RING,31.34mm ID x 3.53mm

Incl in 1

1шт.

3

16992415

PLUG,M16 x 1.5

Engine Cooling Piping System

1шт.

4

16508260

GASKET,16mm ID x 22mm OD x 1.5mm

Engine Cooling Piping System

1шт.

5

16600224

SCREW,Hex, M8 x 1.25 x 18mm

2шт.

6

16993711

PLUG,M35 x 1.5

Engine Cooling Piping System

1шт.

7

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

Engine Cooling Piping System

1шт.

8

5801583172

PLUG

Engine Cooling Piping System

1шт.

9

16597925

BOLT,Hex, M8 x 14mm

1шт.

10

4892762

PLUG,1/4 - 18" OD x 0.46" L

Engine Cooling Piping System

1шт.

Выбрано товаров: 10
