Запчасти Case IH F5BFL413E B002 (10.304.AE) - ENGINE OIL FILTER (10) - ENGINE

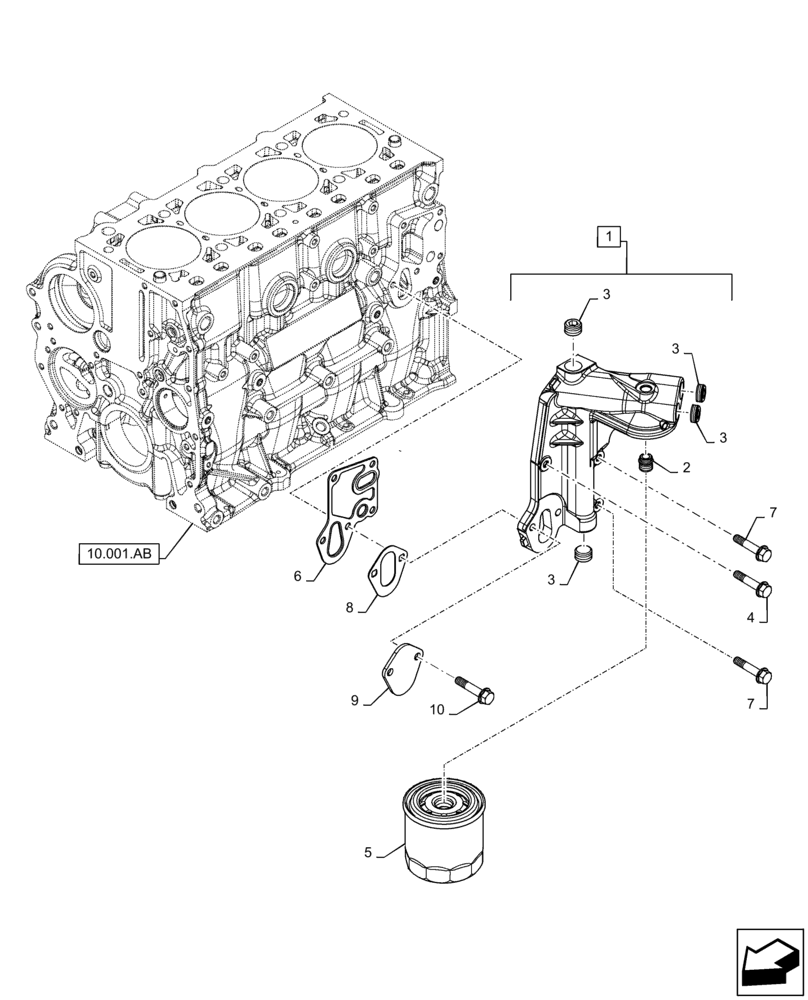

Схема запчастей Case IH F5BFL413E B002 - (10.304.AE) - ENGINE OIL FILTER (10) - ENGINE
6
8
10
2
7
4
3
7
1
9
10.001.ab
3
3
3
5

Артикул

Название

Примечание

Количество

1

504271928

FILTER HEAD

ASSY, Incl 2, 3

1шт.

2

504289002

UNION

Engine Oil Filter

1шт.

3

504113860

PLUG,Threaded, 1/2"

Engine Oil Filter

4шт.

4

16673835

BOLT,Hex, M8 x 30mm

1шт.

5

5801724485

ENGINE OIL FILTER

1шт.

6

504235816

GASKET

Engine Oil Filter

1шт.

7

16592225

BOLT,M8 x 55mm

2шт.

8

504332889

GASKET

Engine Oil Filter

1шт.

9

504332869

COVER

Engine Oil Filter

1шт.

10

16673835

BOLT,Hex, M8 x 30mm

2шт.

10

16586725

BOLT,Hex, M8 x 1.25 x 40mm

2шт.

Выбрано товаров: 11
