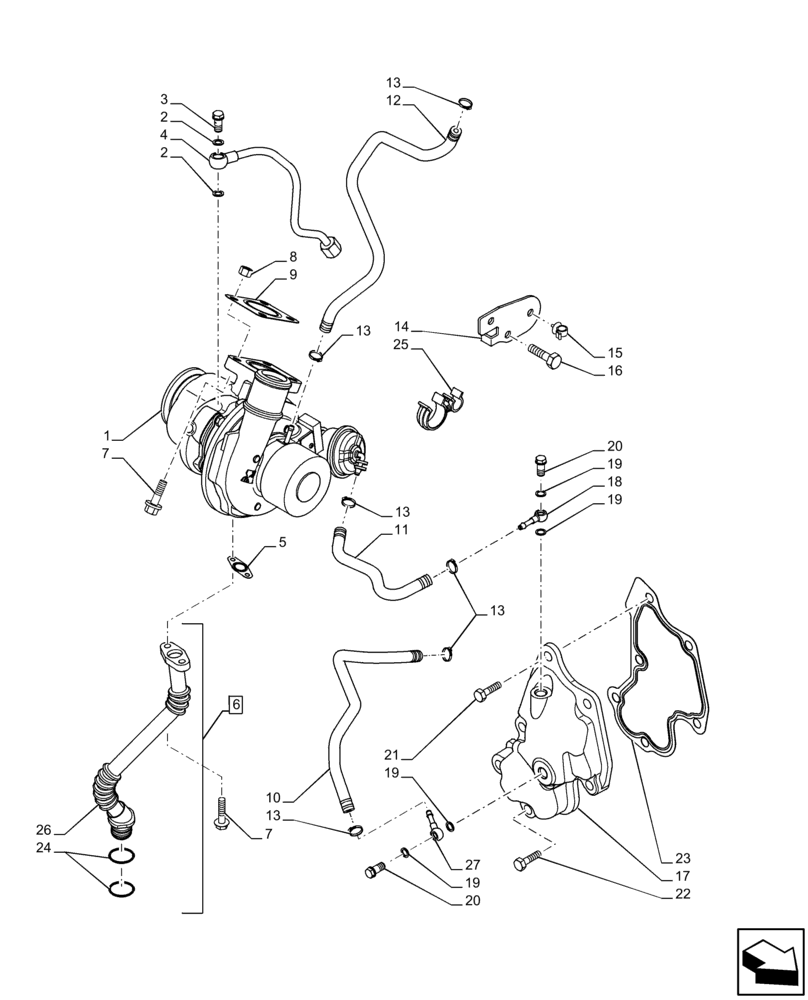

Запчасти Case IH F5BFL413E B002 (10.250.AC) - TURBOCHARGER (10) - ENGINE

1

5801861492

TURBOCHARGER

1шт.

2

10298460

SEALING WASHER,M12.2 x 18 x 1.5

2шт.

3

5801723611

UNION

Turbocharger

1шт.

4

5801721053

PIPE

Turbocharger

1шт.

5

504377006

GASKET

Turbocharger

1шт.

6

5801509000

PIPE

Turbocharger, ASSY, Incl 24, 26

1шт.

7

18137825

BOLT,Hex, M6 x 16mm

D=8,5 mm

2шт.

8

500322677

NUT,M8

2шт.

9

4899343

GASKET,0.45mm Thk

Turbocharger

1шт.

10

5801814629

PIPE

Turbocharger

1шт.

11

5801814628

PIPE

Turbocharger

1шт.

12

5801404365

TUBE

Turbocharger, M8 x 1,25mm

1шт.

13

18225770

COLLAR CLAMP

6шт.

14

5801509009

BRACKET, SUPPORTING

Turbocharger, M6 x 30mm

1шт.

15

504000060

COLLAR

2шт.

16

16600224

SCREW,Hex, M8 x 1.25 x 18mm

1шт.

17

5801814632

COVER

Turbocharger

1шт.

18

5801673344

COUPLING

Turbocharger

1шт.

19

98474303

WASHER,8mm ID x 14mm OD x 2.3mm Thk

4шт.

20

4864078

BANJO BOLT,M8 x 1.25

2шт.

21

16978124

BOLT,Hex, M6 x 14mm

3шт.

22

16586025

SCREW,Hex, M6 x 30mm

3шт.

23

5801509267

GASKET

Turbocharger

1шт.

24

17281881

O-RING,0.674" ID x 0.88" OD x 0.103"

2шт.

25

5801425138

CLAMP

1шт.

25

5801746750

SPRING LOCK

1шт.

26

NSS

NOT SOLD SEPARAT

Turbocharger, Tube

1шт.

27

5801673343

SEAL

Turbocharger

1шт.
