(10.304.AM) - OIL, PRESSURE CONTROL VALVE

Запчасти Case IH F5BFL413D C001 (10.304.AM) - OIL, PRESSURE CONTROL VALVE (10) - ENGINE

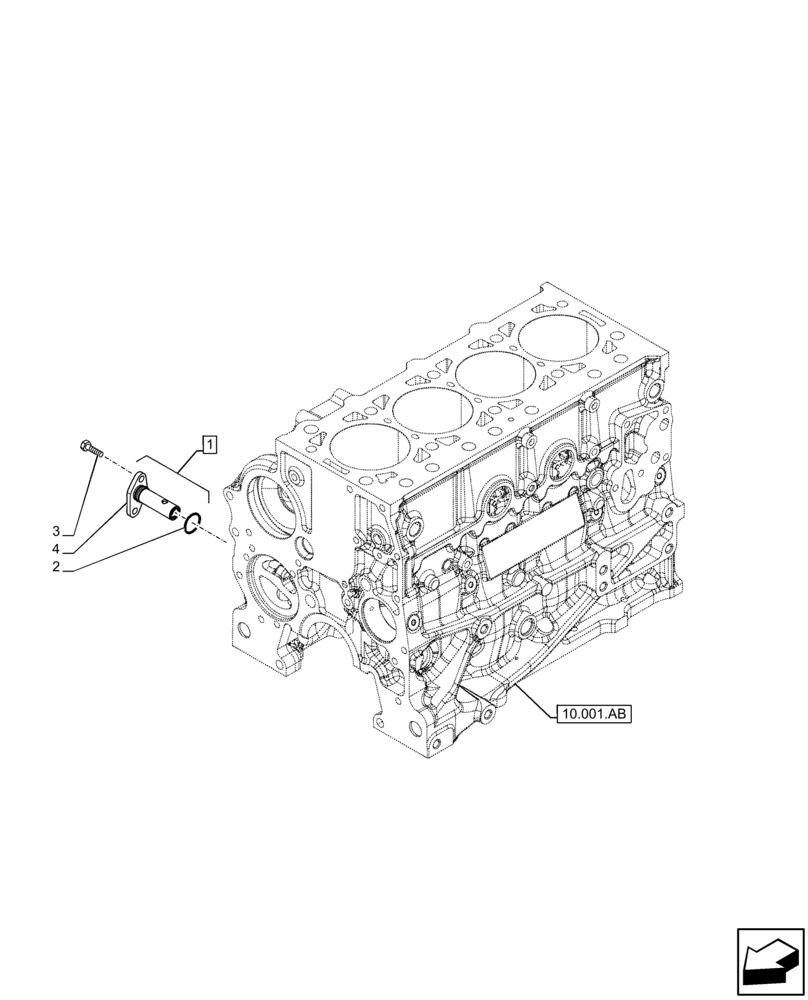

Схема запчастей Case IH F5BFL413D C001 - (10.304.AM) - OIL, PRESSURE CONTROL VALVE (10) - ENGINE
4
10.001.ab
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5801724492

VALVE

Oil Pressure Control, ASSY, Incl 2, 4

1шт.

2

17281881

O-RING,0.674" ID x 0.88" OD x 0.103"

1шт.

2

17095814

WASHER

1шт.

3

16978124

BOLT,Hex, M6 x 14mm

2шт.

3

5801502710

SCREW

1шт.

4

NSS

NOT SOLD SEPARAT

Oil Pressure Control Valve, Incl in 1

1шт.

Выбрано товаров: 6
