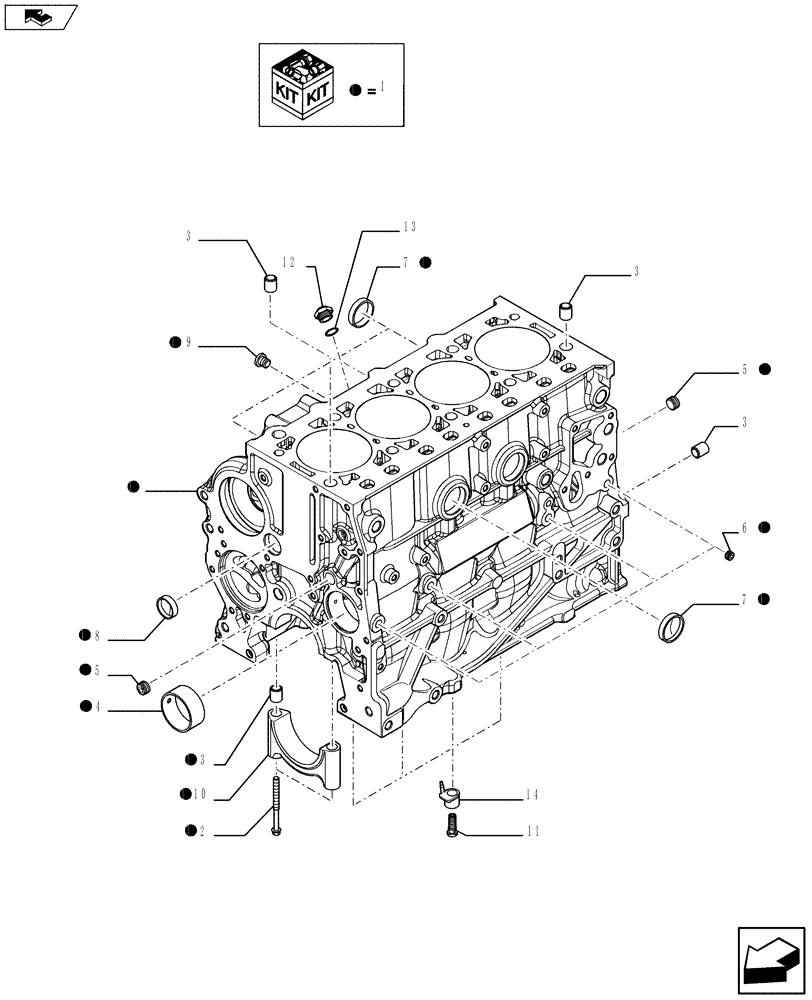

Запчасти Case IH F5AE9484G A010 (10.001.02) - CYLINDER BLOCK & RELATED PARTS (5801372164) (10) - ENGINE

1

5801372152

CYLINDER BLOCK

ASSY, Contains Ref. 2-10

1шт.

2

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

10шт.

3

7300019

DOWEL,0.75mm Thk

14шт.

4

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

5

16988101

PLUG

D = 3/8"

3шт.

6

504138060

PLUG

D = 1/8"

4шт.

7

14329901

PLUG,M40, Tapered

6шт.

8

16988701

PLUG,Lock, M30

D = 30 mm

1шт.

9

504016052

PLUG,M14 x 1.5

M14 x 1.5

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

504173058

BANJO BOLT

4шт.

13

504077652

SEALING WASHER,13mm ID x 19mm OD

1шт.

14

504156514

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

4шт.
